Recommendations for Installing Sensors on Cylindrical Tanks
When installing sensors on cylindrical tanks with a diameter of 420 to 710 mm, it is necessary to purchase a gasket kit for round tanks.
Replace the gasket and bolts supplied with the fuel level sensor with the gasket and bolts from the round tank kit.

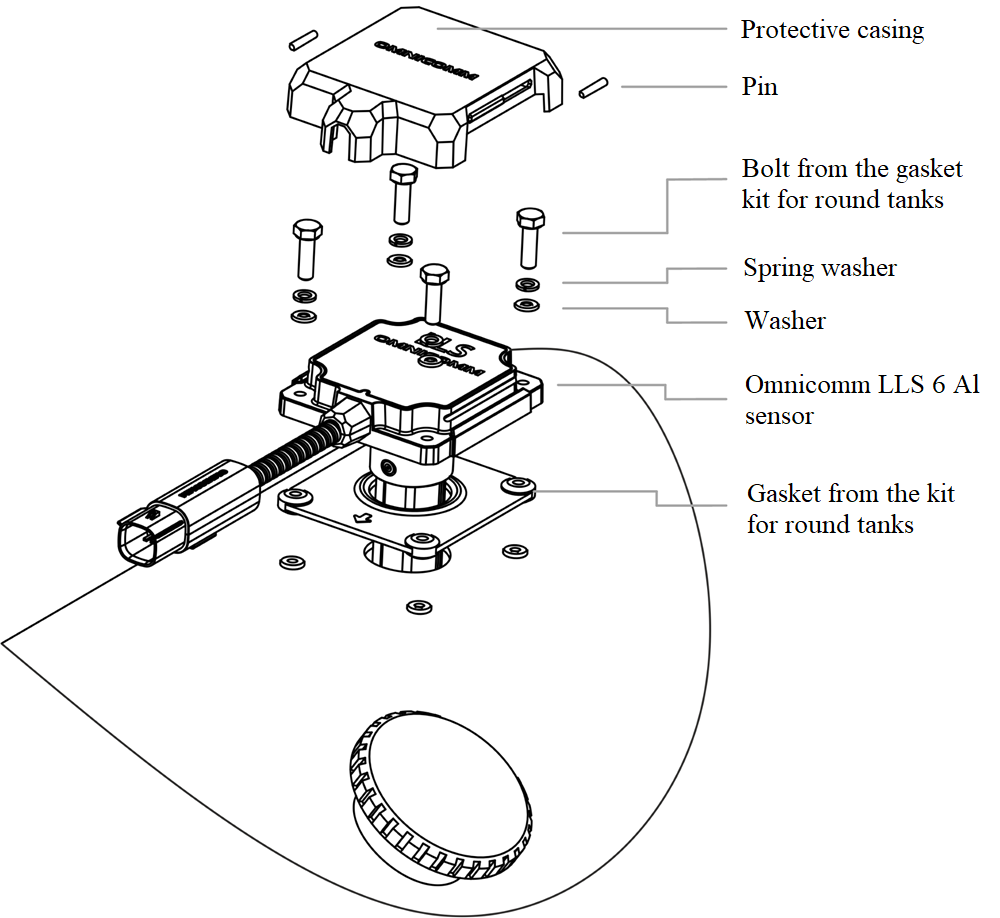

Mounting Procedure for the Omnicomm LLS 6 AI Sensor:

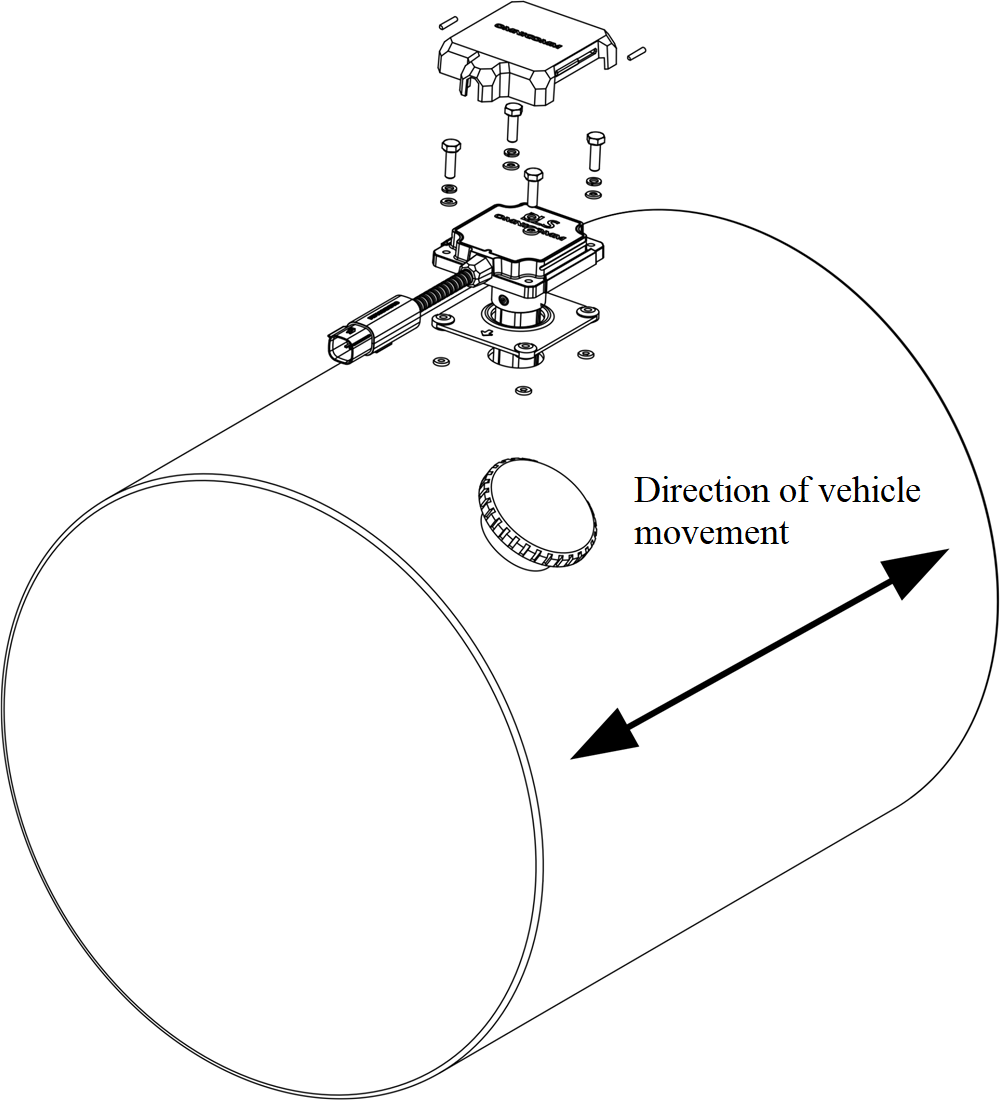

The sensor cable must be positioned along or against the direction of the vehicle’s movement, or along the long side of the tank.
