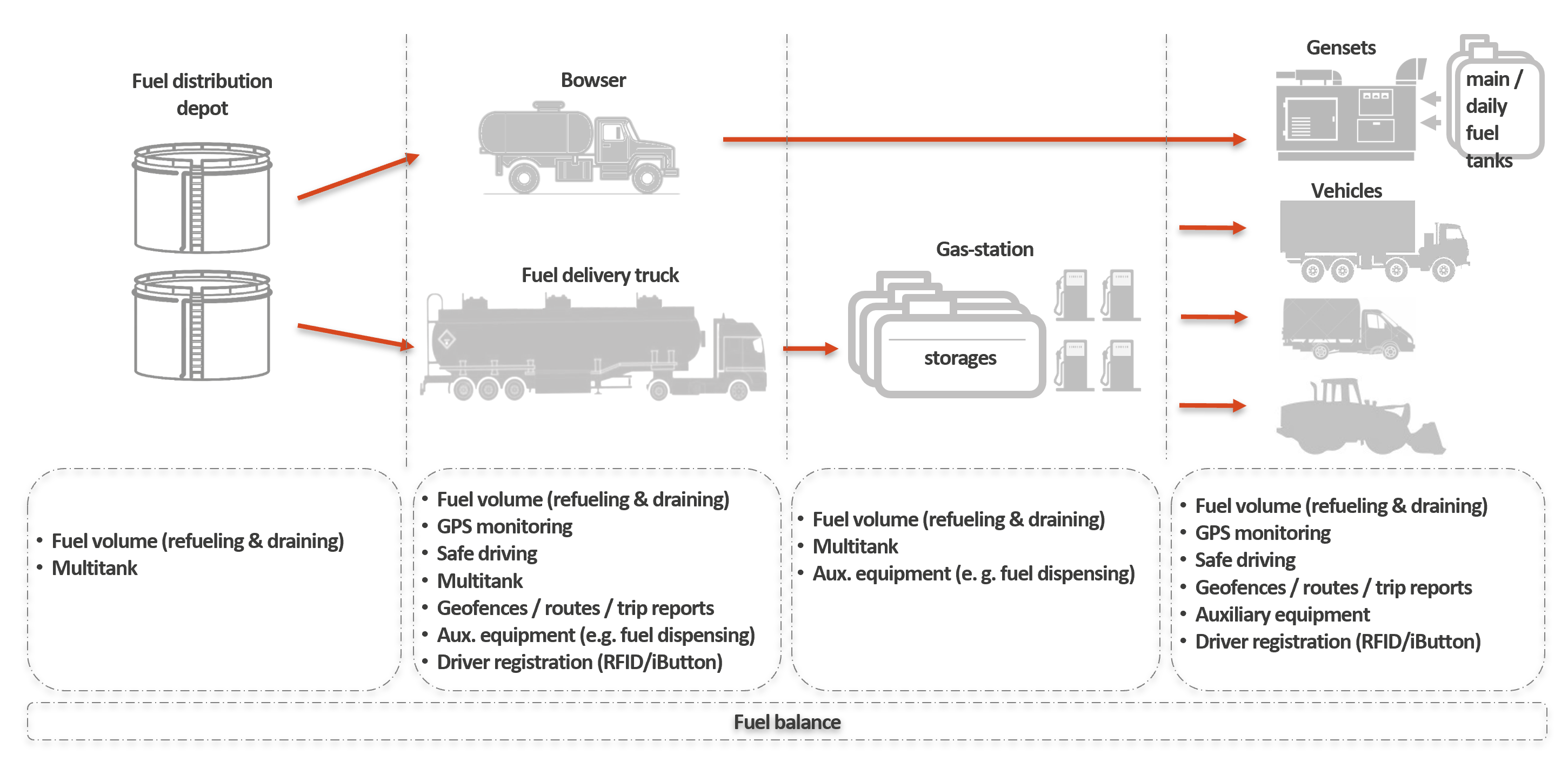

A typical chain of fuel delivery from a distribution storage facility to end consumers may look as follows. For each type of facility in the monitoring system there is a set of reports most suitable for each type of facility.

For a single enterprise, which objects are fitted with Omnicomm equipment, the most informative is Fuel Balance Report that allows tracking and monitoring fuel chains across the entire company.

A sample set of reports and options specific to monitoring in various industries. This set may vary from case to case.

​

* - manipulators, opening control, axle load, status control, temperature, TPMS, IQFreeze, etc.

* * - an integral infrastructure of the fuel storage facilities, as well as mobile objects equipped with Omnicomm sensors and GPS trackers (fuel trucks, mobile gas stations, etc.)

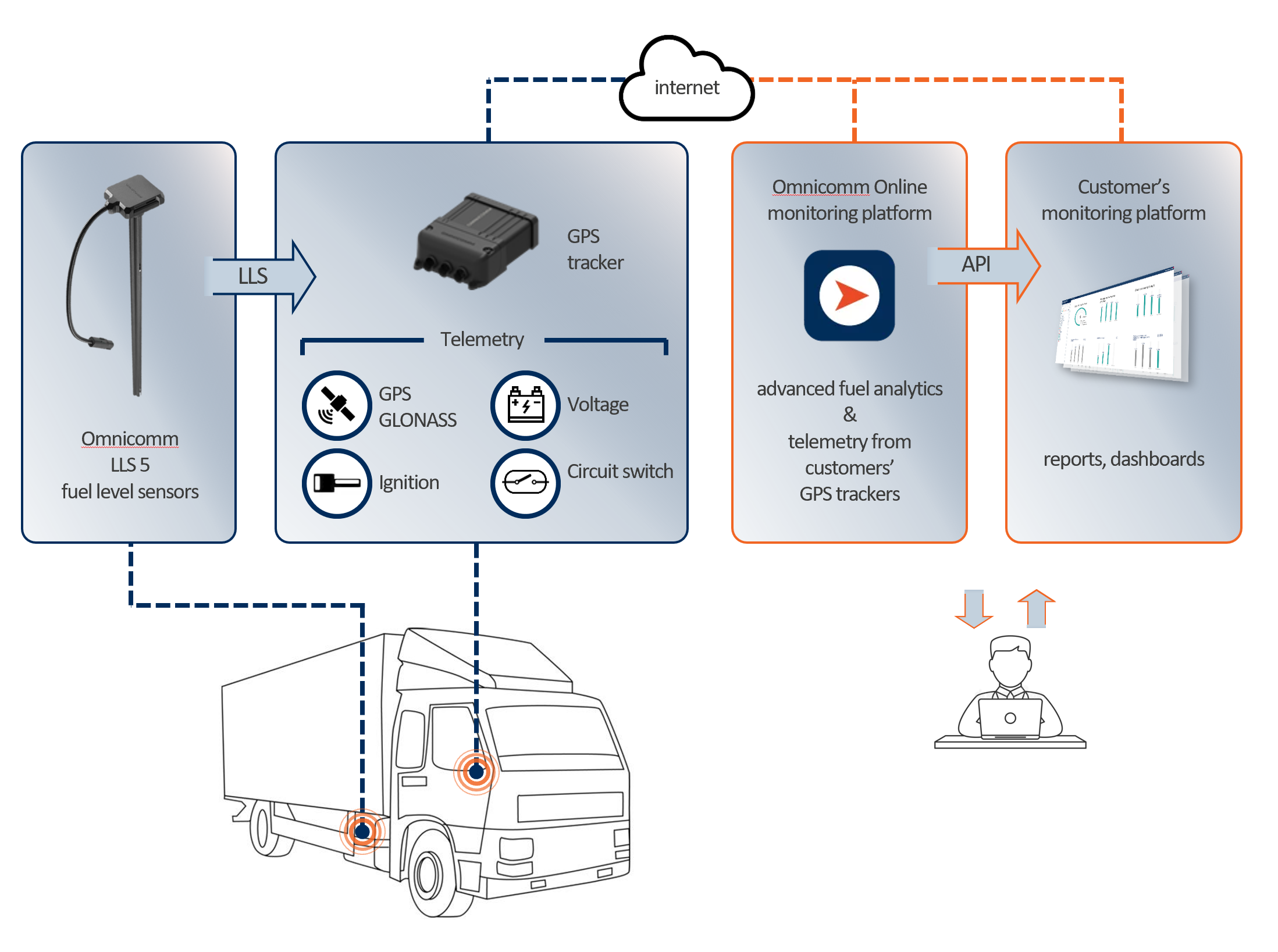

Sample equipment configuration and report list for monitoring a typical single tank truck.

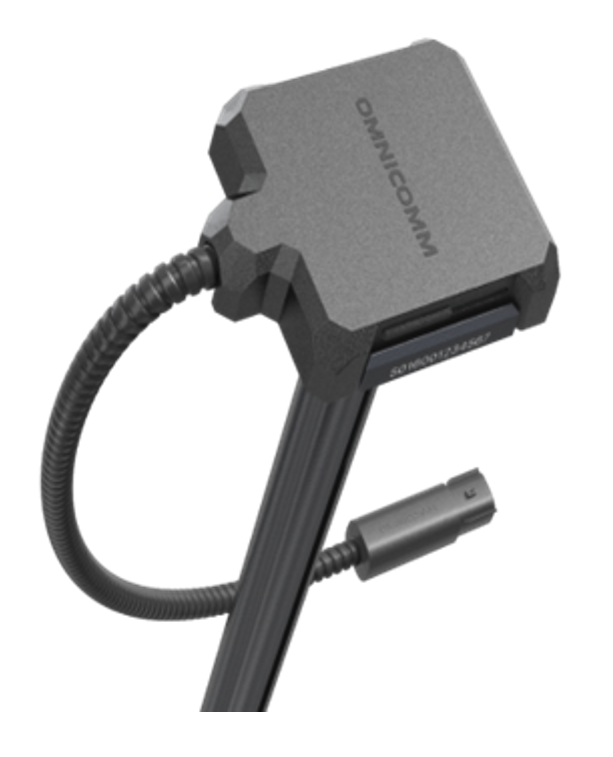

	OMNICOMM LLS 5 fuel level sensors are exceptionally robust, extremely precise (99.5% accuracy), totally reliable (highest possible ingress protection rating of IP69k) and super-safe. They deliver consistently high accuracy in even the harshest conditions. This sensor is ideal for both vehicles and stationary fuel storage facilities, guaranteeing seamless operation and maximum economic efficiency. OMNICOMM LLS 5 using unique fuel analysis technology FUELSCAN® developed by OMNICOMM which compares the physical characteristics of filled fuel with the characteristics of the fuel used for calibration to introduce a correction coefficient that automatically adjusts sensor readings to deliver accurate measurements. It means that no additional calibrations will be required. See more details in the user manual: link

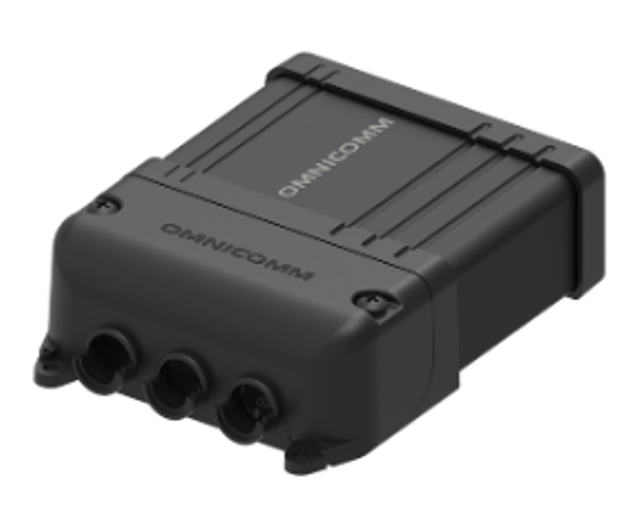

	OMNICOMM Profi Wi-Fi is an IP54 rating GPS-tracker that ensures stable data transmission in remote and challenging locations without cellular coverage. By using Wi-Fi for data transfer, the tracker enables effective monitoring even in areas where traditional communication methods fail. This solution is ideal for agricultural, construction, and mining industries, ensuring continuous tracking and reliable operation in the absence of cellular networks. The OMNICOMM Profi Wi-Fi tracker enhances fleet control in the most challenging environments. Combined with the OMNICOMM Online platform, it provides reliable connectivity and accuracy, improving fleet management and reducing the risk of losing control over assets. See more details in the user manual: link

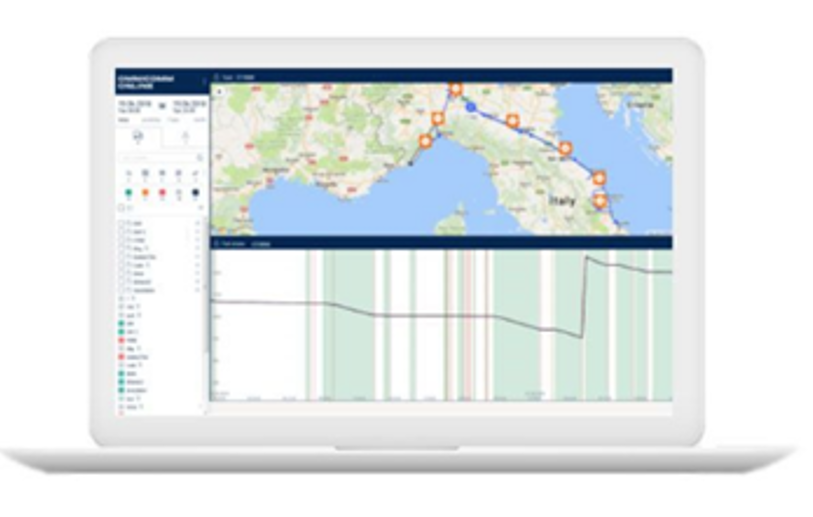

	Omnicomm Online is a cloud platform that provides users with the best fuel analytics tools and operational insights into monitored facilities. The platform delivers a complete picture of fuel costs and fuel consumption across vehicles.

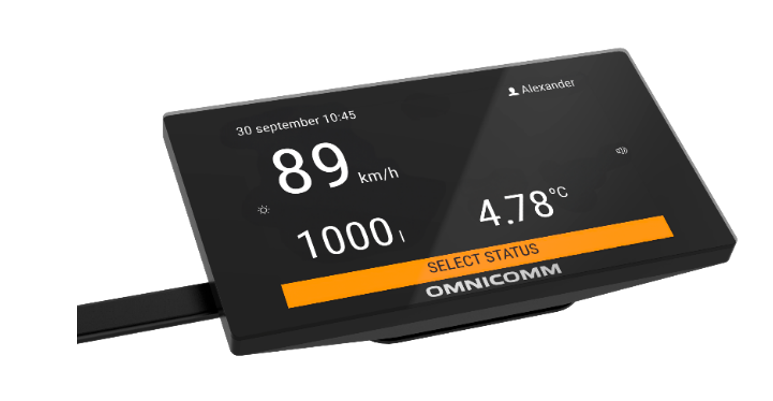

	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface. ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

Specification example

List of useful reports in Omnicomm Online

	OMNICOMM LLS 5 fuel level sensors are exceptionally robust, extremely precise (99.5% accuracy), totally reliable (highest possible ingress protection rating of IP69k) and super-safe. They deliver consistently high accuracy in even the harshest conditions. This sensor is ideal for both vehicles and stationary fuel storage facilities, guaranteeing seamless operation and maximum economic efficiency. OMNICOMM LLS 5 using unique fuel analysis technology FUELSCAN® developed by OMNICOMM which compares the physical characteristics of filled fuel with the characteristics of the fuel used for calibration to introduce a correction coefficient that automatically adjusts sensor readings to deliver accurate measurements. It means that no additional calibrations will be required. See more details in the user manual: link
	OMNICOMM Profi Wi-Fi is an IP54 rating GPS-tracker that ensures stable data transmission in remote and challenging locations without cellular coverage. By using Wi-Fi for data transfer, the tracker enables effective monitoring even in areas where traditional communication methods fail. This solution is ideal for agricultural, construction, and mining industries, ensuring continuous tracking and reliable operation in the absence of cellular networks. The OMNICOMM Profi Wi-Fi tracker enhances fleet control in the most challenging environments. Combined with the OMNICOMM Online platform, it provides reliable connectivity and accuracy, improving fleet management and reducing the risk of losing control over assets. See more details in the user manual: link
	Omnicomm Online is a cloud platform that provides users with the best fuel analytics tools and operational insights into monitored facilities. The platform delivers a complete picture of fuel costs and fuel consumption across vehicles.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface. ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

Specification example

List of useful reports in Omnicomm Online

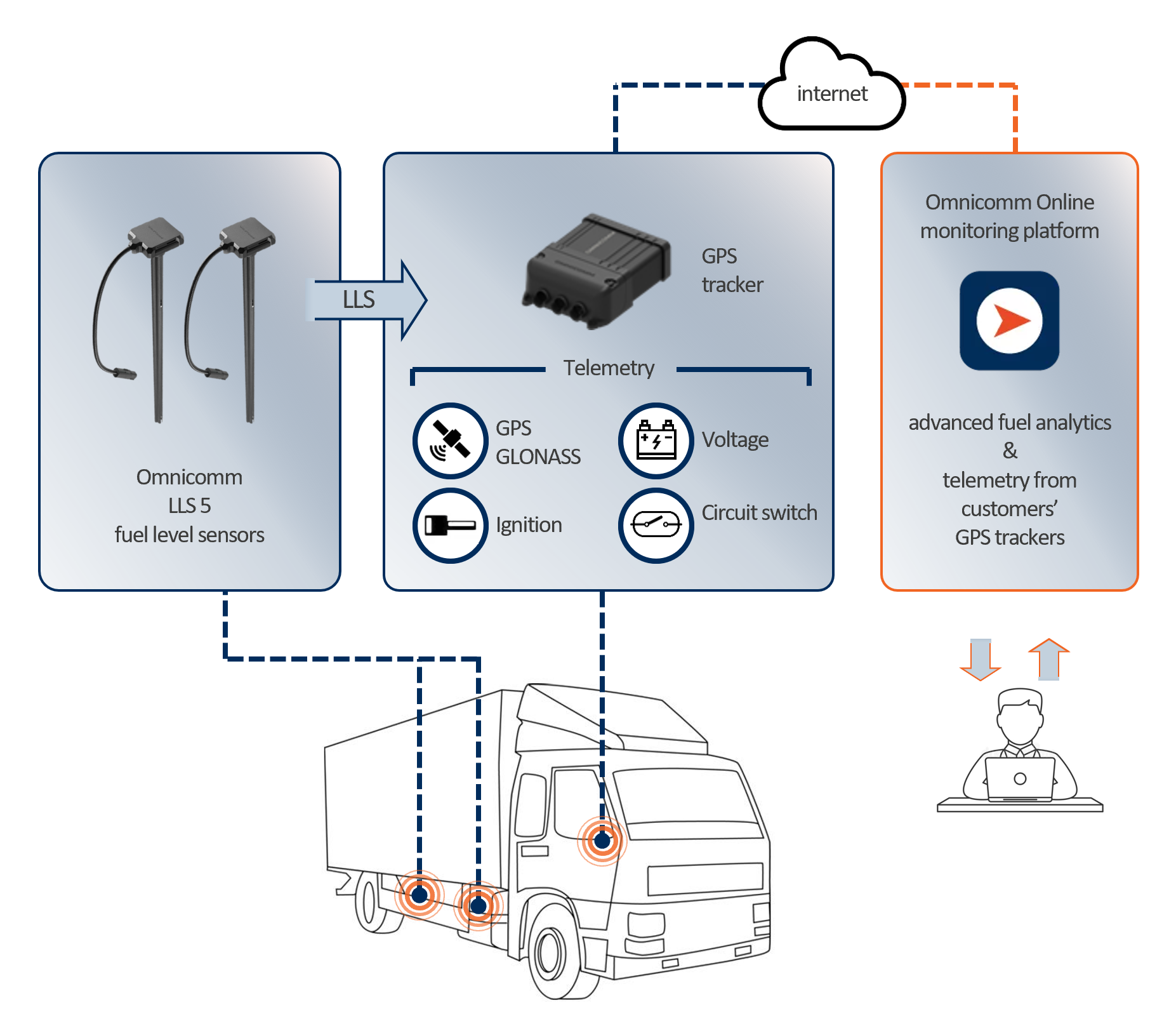

Sample equipment configuration and report list for monitoring a typical single tank construction machine.

	OMNICOMM LLS 5 fuel level sensors are exceptionally robust, extremely precise (99.5% accuracy), totally reliable (highest possible ingress protection rating of IP69k) and super-safe. They deliver consistently high accuracy in even the harshest conditions. This sensor is ideal for both vehicles and stationary fuel storage facilities, guaranteeing seamless operation and maximum economic efficiency. OMNICOMM LLS 5 using unique fuel analysis technology FUELSCAN® developed by OMNICOMM which compares the physical characteristics of filled fuel with the characteristics of the fuel used for calibration to introduce a correction coefficient that automatically adjusts sensor readings to deliver accurate measurements. It means that no additional calibrations will be required. See more details in the user manual: link
	OMNICOMM Profi Wi-Fi is an IP54 rating GPS-tracker that ensures stable data transmission in remote and challenging locations without cellular coverage. By using Wi-Fi for data transfer, the tracker enables effective monitoring even in areas where traditional communication methods fail. This solution is ideal for agricultural, construction, and mining industries, ensuring continuous tracking and reliable operation in the absence of cellular networks. The OMNICOMM Profi Wi-Fi tracker enhances fleet control in the most challenging environments. Combined with the OMNICOMM Online platform, it provides reliable connectivity and accuracy, improving fleet management and reducing the risk of losing control over assets. See more details in the user manual: link
	Omnicomm Online is a cloud platform that provides users with the best fuel analytics tools and operational insights into monitored facilities. The platform delivers a complete picture of fuel costs and fuel consumption across vehicles.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface. ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

Specification example

List of useful reports in Omnicomm Online

* [3PP] – 3rd party product

Often construction and mining equipment has complex shaped fuel tanks, here we give examples of the placement of additional sensors to compensate for different inclines, height differences and severe fuel fluctuations in the tanks during operation of the machine.

In addition to monitoring the fuel level in the tank, the mobile fuel dispenser can be equipped with a fuel flow meter, the data from which can be presented in a special ‘Fuel Dispensing’ report. This option complements the standard tank level measurement.

	OMNICOMM LLS-Ex 5 is the explosion-proof variant of the OMNICOMM LLS 5, designed for use in large tanks and facilities with stringent safety requirements — such as fuel storage depots, gas stations, and bowsers. This device must always be operated in conjunction with the BIS-MX power protection unit, installed in a safe zone. ​Certified by ATEX, the LLS-Ex 5 is approved for use in hazardous environments where flammable substances pose an explosion risk. Its robust design ensures compliance with safety standards across multiple industries, safeguarding both personnel and infrastructure. See more details in the user manual: link
	BIS-MX intrinsic safety unit is designed to protect circuits when exposed to a voltage of up to 250 V. LLS-Ex 5 fuel level sensor is located in a hazardous area, and BIS-MX should be located in the explosion safe area.
	KTZ-MX is the extension cable, with options from 10-15-20 meters, to connect LLS-Ex 5 (located in hazardous area) to BIS-MX (located in the safe zone)
	OMNICOMM Profi Wi-Fi is an IP54 rating GPS-tracker that ensures stable data transmission in remote and challenging locations without cellular coverage. By using Wi-Fi for data transfer, the tracker enables effective monitoring even in areas where traditional communication methods fail. This solution is ideal for agricultural, construction, and mining industries, ensuring continuous tracking and reliable operation in the absence of cellular networks. The OMNICOMM Profi Wi-Fi tracker enhances fleet control in the most challenging environments. Combined with the OMNICOMM Online platform, it provides reliable connectivity and accuracy, improving fleet management and reducing the risk of losing control over assets. See more details in the user manual: link
	Omnicomm Online is a cloud platform that provides users with the best fuel analytics tools and operational insights into monitored facilities. The platform delivers a complete picture of fuel costs and fuel consumption across vehicles.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface. ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

Specification example

List of useful reports in Omnicomm Online

Fuel delivery trucks usually have from one to six fuel compartments in the tank, each equipped with a separate LLS-Ex 5 sensor. The spark protection unit and the tracker are located in the explosion-proof area, usually in the driver's cab.

	OMNICOMM LLS-Ex 5 is the explosion-proof variant of the OMNICOMM LLS 5, designed for use in large tanks and facilities with stringent safety requirements — such as fuel storage depots, gas stations, and bowsers. This device must always be operated in conjunction with the BIS-MX power protection unit, installed in a safe zone. ​Certified by ATEX, the LLS-Ex 5 is approved for use in hazardous environments where flammable substances pose an explosion risk. Its robust design ensures compliance with safety standards across multiple industries, safeguarding both personnel and infrastructure. See more details in the user manual: link
	BIS-MX intrinsic safety unit is designed to protect circuits when exposed to a voltage of up to 250 V. LLS-Ex 5 fuel level sensor is located in a hazardous area, and BIS-MX should be located in the explosion safe area.
	KTZ-MX is the extension cable, with options from 10-15-20 meters, to connect LLS-Ex 5 (located in hazardous area) to BIS-MX (located in the safe zone)
	OMNICOMM Profi is a high-tech GPS-tracker designed for use in challenging environments. It is ideal for vehicles operating under extreme conditions, including construction and agricultural machinery, mining equipment, and heavy-duty vehicles. With IP54 protection, Profi ensures reliable navigation and monitoring, delivering accurate data even in the most remote locations.​ Using OMNICOMM Profi in heavy industries allows efficient tracking of machinery even under the most demanding conditions. Integrated with the OMNICOMM Online platform, this solution provides full fleet control, enhancing productivity and reducing risks. Its durable and reliable construction ensures stable operation even in the harshest environments, maintaining connectivity and supporting real-time processes. See more details in the user manual: link
	Omnicomm Online is a cloud platform that provides users with the best fuel analytics tools and operational insights into monitored facilities. The platform delivers a complete picture of fuel costs and fuel consumption across vehicles.

Specification example

List of useful reports in Omnicomm Online

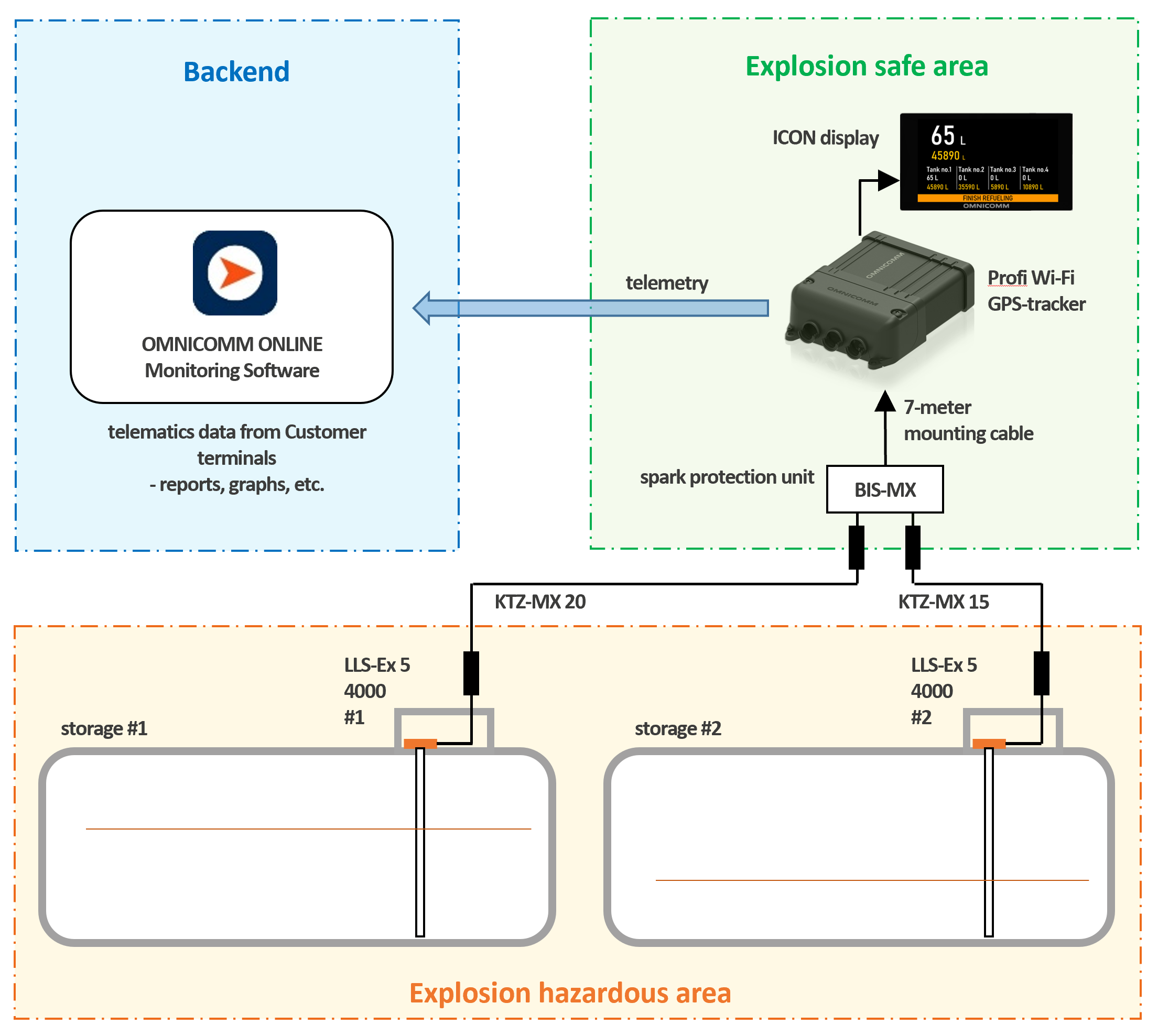

A solution for petrol stations can include at least explosion-protected LLS-Ex 5 sensors installed in the tanks, a GPS tracker and a monitoring platform. In addition, an ICON display, an end switches for access control, etc. can be optionally available.

	OMNICOMM LLS-Ex 5 is the explosion-proof variant of the OMNICOMM LLS 5, designed for use in large tanks and facilities with stringent safety requirements — such as fuel storage depots, gas stations, and bowsers. This device must always be operated in conjunction with the BIS-MX power protection unit, installed in a safe zone. ​Certified by ATEX, the LLS-Ex 5 is approved for use in hazardous environments where flammable substances pose an explosion risk. Its robust design ensures compliance with safety standards across multiple industries, safeguarding both personnel and infrastructure. See more details in the user manual: link
	BIS-MX intrinsic safety unit is designed to protect circuits when exposed to a voltage of up to 250 V. LLS-Ex 5 fuel level sensor is located in a hazardous area, and BIS-MX should be located in the explosion safe area.
	KTZ-MX is the extension cable, with options from 10-15-20 meters, to connect LLS-Ex 5 (located in hazardous area) to BIS-MX (located in the safe zone)
	OMNICOMM Profi Wi-Fi is an IP54 rating GPS-tracker that ensures stable data transmission in remote and challenging locations without cellular coverage. By using Wi-Fi for data transfer, the tracker enables effective monitoring even in areas where traditional communication methods fail. This solution is ideal for agricultural, construction, and mining industries, ensuring continuous tracking and reliable operation in the absence of cellular networks. The OMNICOMM Profi Wi-Fi tracker enhances fleet control in the most challenging environments. Combined with the OMNICOMM Online platform, it provides reliable connectivity and accuracy, improving fleet management and reducing the risk of losing control over assets. See more details in the user manual: link
	Omnicomm Online is a cloud platform that provides users with the best fuel analytics tools and operational insights into monitored facilities. The platform delivers a complete picture of fuel costs and fuel consumption across vehicles.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface. ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

Specification example

List of useful reports in Omnicomm Online

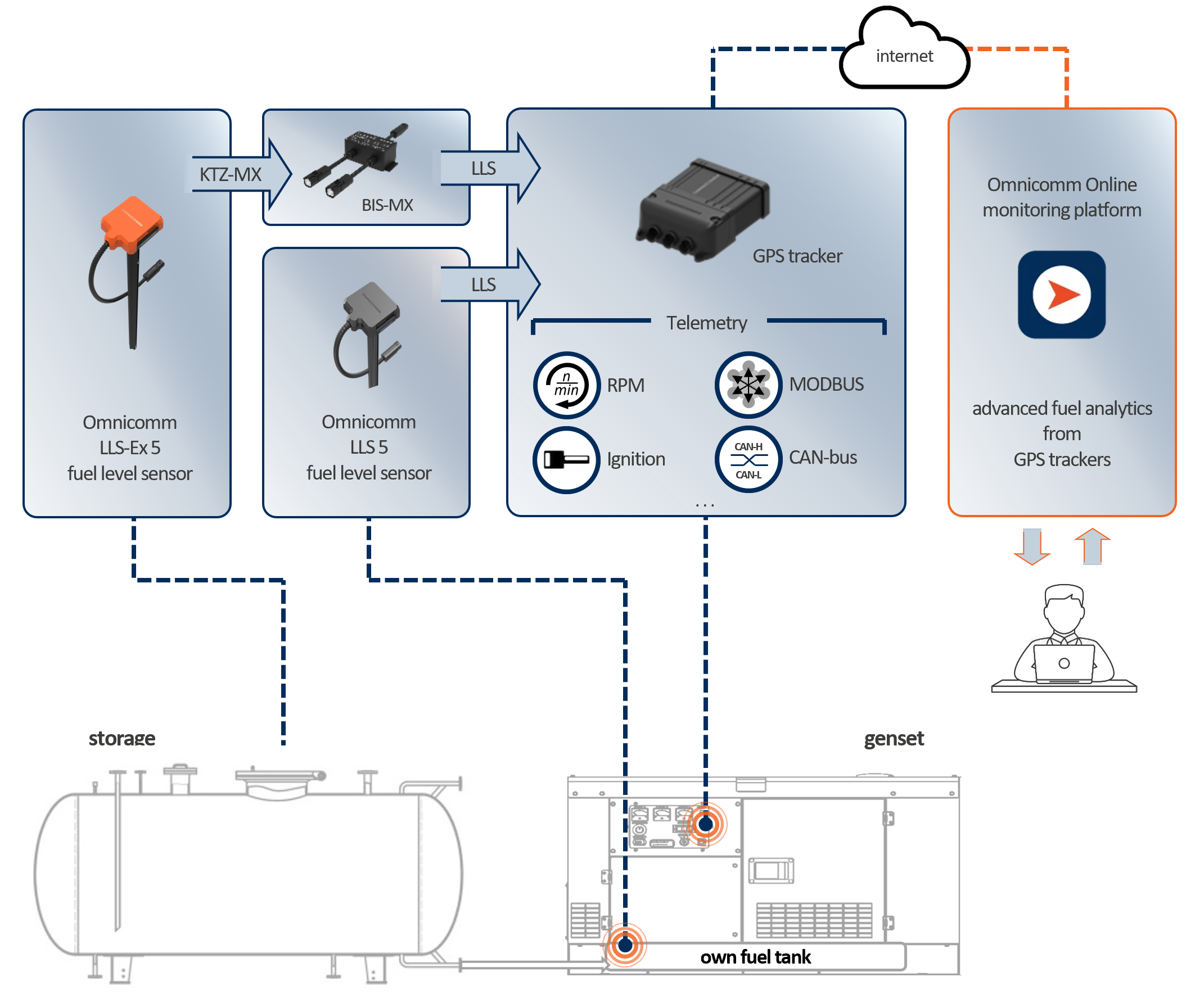

Omnicomm’s fuel level monitoring system ensures reliable and efficient operation of generators by providing real-time data on fuel consumption in both internal tanks and external storage facilities. This solution helps prevent unexpected downtime, optimize refueling schedules, and detect potential leaks or theft, ensuring uninterrupted power supply and cost savings.

In different industries and usage scenarios, the set of important parameters to be monitored may vary, e.g.:

With remote monitoring and automated reporting, Omnicomm’s system offers full visibility into fuel levels and reduces risks associated with fuel shortages or irregularities.

In addition to fuel monitoring, many parameters from auxiliary sensors can be monitored, including via CAN-bus or MODBUS interfaces. This is especially useful when data on power output, current, voltage, etc. is available, both phase-by-phase and total. ​

	OMNICOMM LLS 5 fuel level sensors are exceptionally robust, extremely precise (99.5% accuracy), totally reliable (highest possible ingress protection rating of IP69k) and super-safe. They deliver consistently high accuracy in even the harshest conditions. This sensor is ideal for both vehicles and stationary fuel storage facilities, guaranteeing seamless operation and maximum economic efficiency. OMNICOMM LLS 5 using unique fuel analysis technology FUELSCAN® developed by OMNICOMM which compares the physical characteristics of filled fuel with the characteristics of the fuel used for calibration to introduce a correction coefficient that automatically adjusts sensor readings to deliver accurate measurements. It means that no additional calibrations will be required. See more details in the user manual: link
	OMNICOMM LLS-Ex 5 is the explosion-proof variant of the OMNICOMM LLS 5, designed for use in large tanks and facilities with stringent safety requirements — such as fuel storage depots, gas stations, and bowsers. This device must always be operated in conjunction with the BIS-MX power protection unit, installed in a safe zone. ​Certified by ATEX, the LLS-Ex 5 is approved for use in hazardous environments where flammable substances pose an explosion risk. Its robust design ensures compliance with safety standards across multiple industries, safeguarding both personnel and infrastructure. See more details in the user manual: link
	BIS-MX intrinsic safety unit is designed to protect circuits when exposed to a voltage of up to 250 V. LLS-Ex 5 fuel level sensor is located in a hazardous area, and BIS-MX should be located in the explosion safe area.
	KTZ-MX is the extension cable, with options from 10-15-20 meters, to connect LLS-Ex 5 (located in hazardous area) to BIS-MX (located in the safe zone)
	OMNICOMM Profi Wi-Fi is an IP54 rating GPS-tracker that ensures stable data transmission in remote and challenging locations without cellular coverage. By using Wi-Fi for data transfer, the tracker enables effective monitoring even in areas where traditional communication methods fail. This solution is ideal for agricultural, construction, and mining industries, ensuring continuous tracking and reliable operation in the absence of cellular networks. The OMNICOMM Profi Wi-Fi tracker enhances fleet control in the most challenging environments. Combined with the OMNICOMM Online platform, it provides reliable connectivity and accuracy, improving fleet management and reducing the risk of losing control over assets. See more details in the user manual: link
	Omnicomm Online is a cloud platform that provides users with the best fuel analytics tools and operational insights into monitored facilities. The platform delivers a complete picture of fuel costs and fuel consumption across vehicles.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface. ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.
