Fuel Sensor Connection

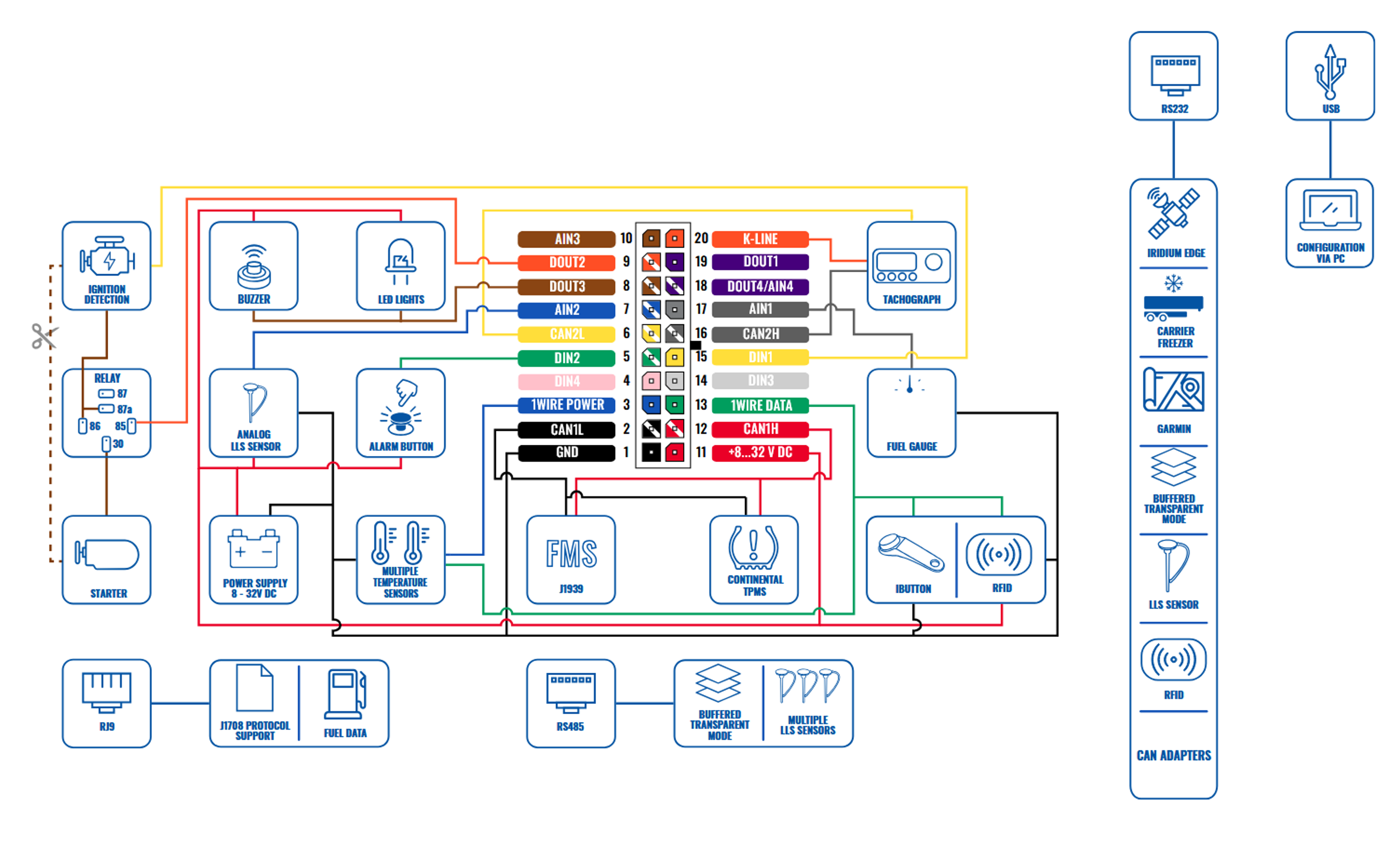

FMC 650 MOUNTING RECOMMENDATIONS

CONNECTING WIRES

• Wires should be fastened to the other wires or non-moving parts. Try to avoid heat emitting and moving objects near the wires.
• The connections should not be seen very clearly. If factory isolation was removed while connecting wires, it should be applied again.
• If the wires are placed in the exterior or in places where they can be damaged or exposed to heat, humidity, dirt, etc., additional isolation should be applied.
• Wires cannot be connected to the board computers or control units.

CONNECTING POWER SOURCE

• Be sure that after the car computer falls asleep, power is still available on chosen wire. Depending on car, this may happen in 5 to 30 minutes period.
• When module is connected, measure voltage again to make sure it did not decrease.
• It is recommended to connect to the main power cable in the fuse box.
• Use 3A, 125V external fuse.

CONNECTING IGNITION WIRE

• Be sure to check if it is a real ignition wire i. e. power does not disappear after starting the engine.
• Check if this is not an ACC wire (when key is in the first position, most of the vehicle electronics are available).
• Check if power is still available when you turn off any of vehicles devices.
• Ignition is connected to the ignition relay output. As alternative, any other relay, which has power output when ignition is on, may be chosen.

CONNECTING GROUND WIRE

• Ground wire is connected to the vehicle frame or metal parts that are fixed to the frame.
• If the wire is fixed with the bolt, the loop must be connected to the end of the wire.
• For better contact scrub paint from the spot where loop is going to be connected

RS485 Digital Sensors Connection

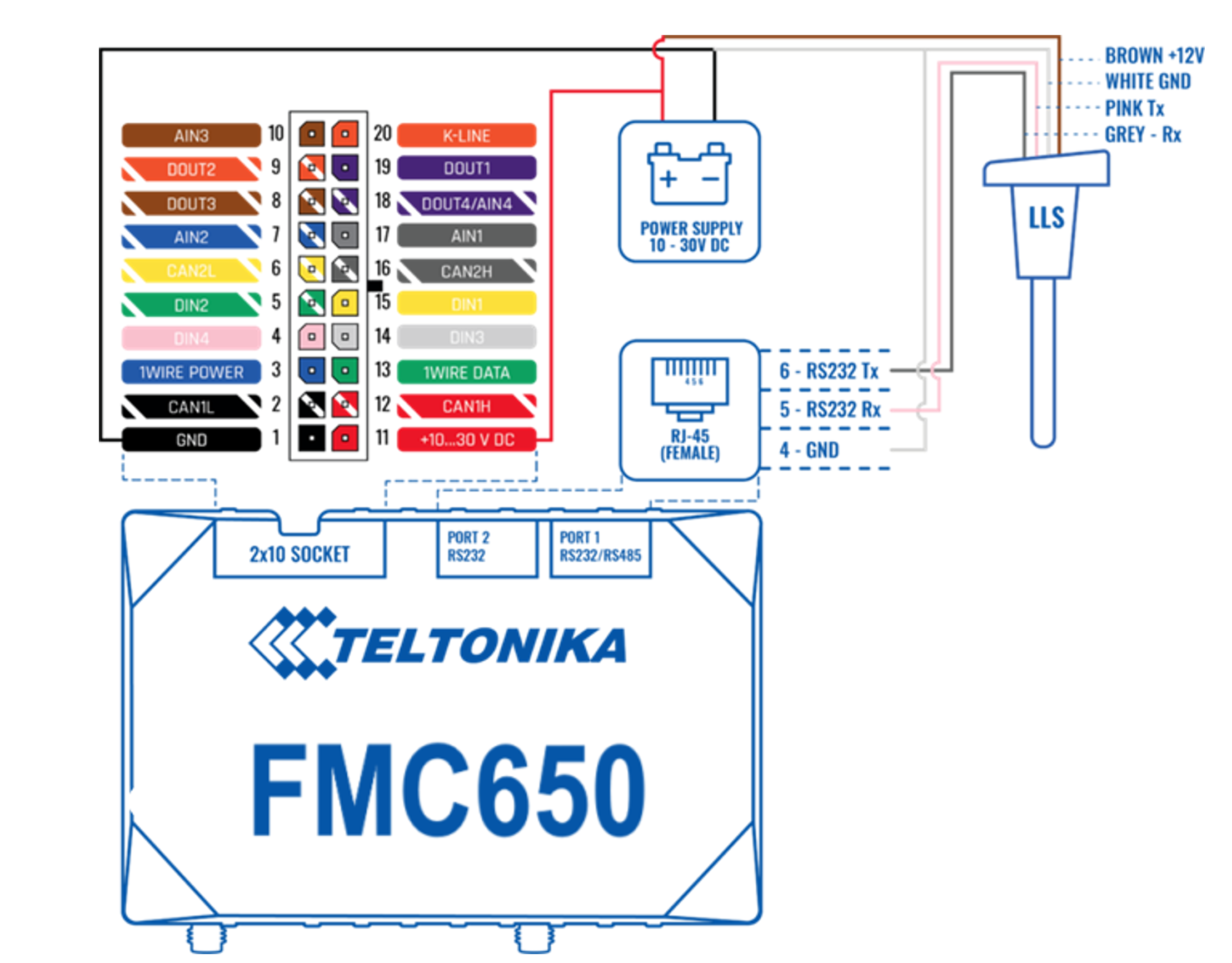

Connect a single LLS via RS232 port.

Connect FMC650 Tracker

1. Use the USB/2-USB cable or another suitable cable to connect the FMC650 tracker to your PC.* *A cable with an USB/2-USB connector is not included in the FMC650 delivery pack.

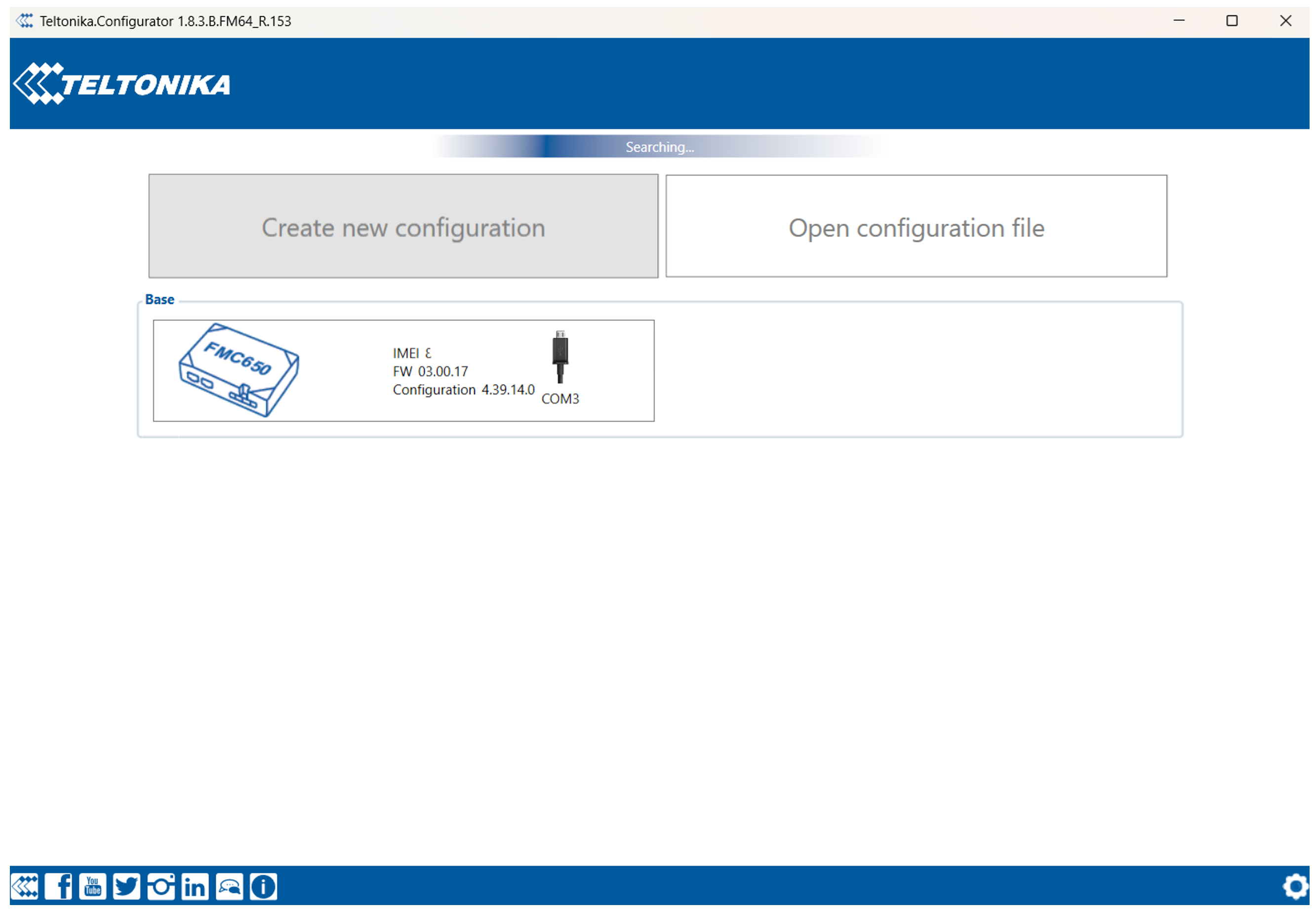

2.Open Teltonika Configurator and wait for it to detect the connected device(1- 2 min). The configurator could restart after the recognition tracker.
