Mining & Construction

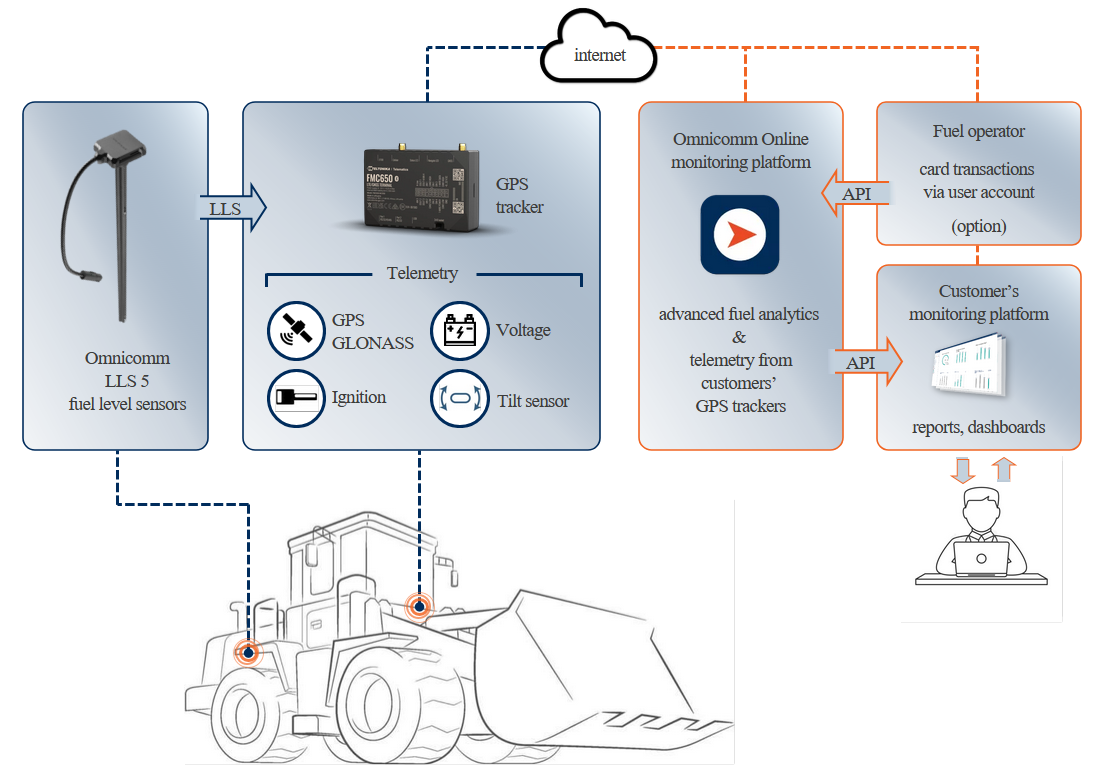

Sample equipment configuration and report list for monitoring a typical single tank construction machine/
Specification example
| Unit | Qty |
|---|---|
| Fuel Level Sensor LLS 5 - 700mm | 1 |
| GPS-tracker Profi 3.0 / Teltonika FMC650 / Xirgo LX45 / … | 1 |
| Omnicomm Online service license | 1 |
| Options | |
| Omnicomm ICON display | 1 |
| Wireless CAN-bus reader(s) | 1 |
| Axle weight sensor | 1 |
| Manipulator tilt sensor | 1 |
 | OMNICOMM LLS 5 fuel level sensors are exceptionally robust, extremely precise (99.5% accuracy), totally reliable (highest possible ingress protection rating of IP69k) and super-safe. They deliver consistently high accuracy in even the harshest conditions. This sensor is ideal for both vehicles and stationary fuel storage facilities, guaranteeing seamless operation and maximum economic efficiency. OMNICOMM LLS 5 using unique fuel analysis technology FUELSCAN® developed by OMNICOMM which compares the physical characteristics of filled fuel with the characteristics of the fuel used for calibration to introduce a correction coefficient that automatically adjusts sensor readings to deliver accurate measurements. It means that no additional calibrations will be required. |
 | KTZ-MX is the extension cable, with options from 10-15-20 meters, to connect LLS-Ex 5 (located in hazardous area) to BIS-MX (located in the safe zone). |
 | OMNICOMM Profi is a high-tech GPS-tracker designed for use in challenging environments. It is ideal for vehicles operating under extreme conditions, including construction and agricultural machinery, mining equipment, and heavy-duty vehicles. With IP54 protection, Profi ensures reliable navigation and monitoring, delivering accurate data even in the most remote locations. Using OMNICOMM Profi in heavy industries allows efficient tracking of machinery even under the most demanding conditions. Integrated with the OMNICOMM Online platform, this solution provides full fleet control, enhancing productivity and reducing risks. Its durable and reliable construction ensures stable operation even in the harshest environments, maintaining connectivity and supporting real-time processes. |
 | OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface. ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies. |
List of useful reports in Omnicomm Online
| Fuel | Cartographic | Movement | Statistics | Operation | Events and Violations | Analytical | Other |
|---|---|---|---|---|---|---|---|
| Fuel Volume, Refueling and Draining | Track, Location | Standstills, Speed, Movement | Statistics, Summary Report, Shifts Report | RPM, Voltage, Auxiliary Equipment Operation, Engine Load, Operation for the Period, Load for the Period | - | Executive’s Desktop | Current State, Visiting the Geofences, Log, Drivers Registration, Job Status, Group Work, Group Ratings, Custom Events |
* [3PP] – 3rd party product
Various Shapes Of Fuel Tanks
Often construction and mining equipment has complex shaped fuel tanks, here we give examples of the placement of additional sensors to compensate for different inclines, height differences and severe fuel fluctuations in the tanks during operation of the machine.
