This document represents a library of typical configurations of Omnicomm equipment for fuel and transport monitoring. It contains examples of configuring Omnicomm LLS fuel level sensors, GPS trackers (Omnicomm and third-party) and reports in Omnicomm Online for different types of objects: ​

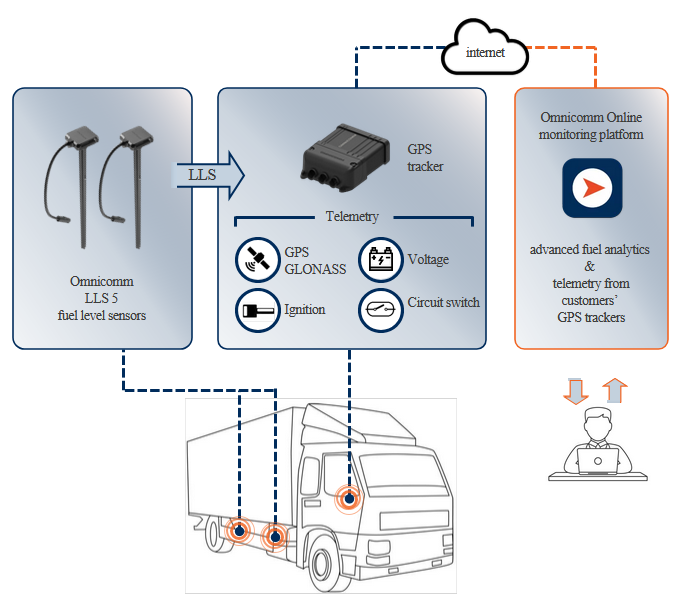

• Single and double tank trucks ​

• Multi-section tanks ​

• Construction and mining equipment ​

• Fuel tankers ​

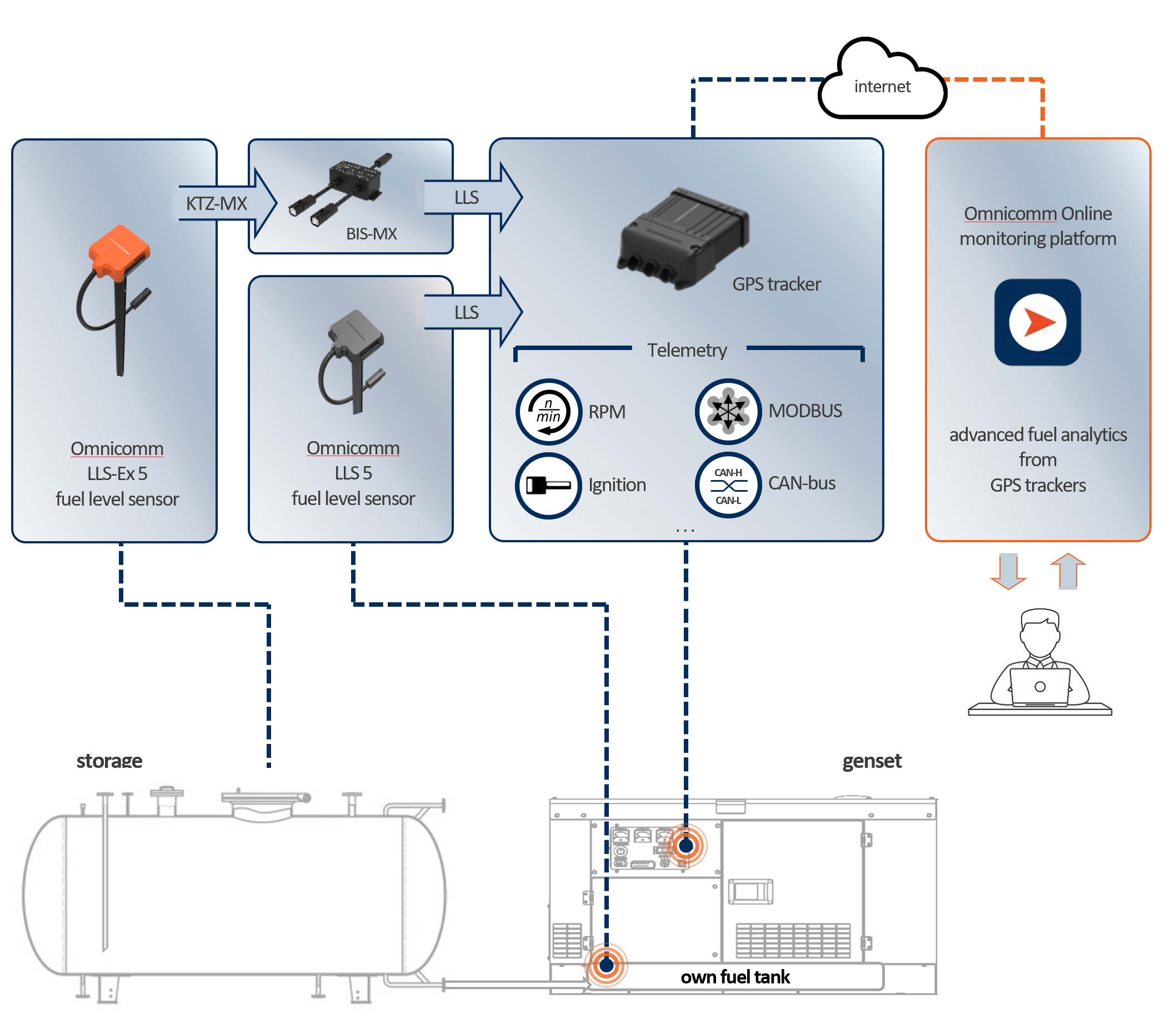

• Stationary tanks and generators ​

• Diesel locomotives ​

• River and marine vessels​

For each type of object, the following are specified:​

• Recommended equipment models​

• Key configuration parameters (calibration, flow algorithms, CAN/J1939 integration)​

• Required reports (fuel volume, refuelling/drainage control, engine speed, driving route, operation of optional equipment, statistical reports, etc.).​

The material is intended for project managers, customers wishing to deploy a fuel monitoring system for specific tasks, engineers for equipment customisation.

A typical chain of fuel delivery from a distribution storage facility to end consumers may look as follows.​

For each type of facility in the monitoring system there is a set of reports most suitable for each type of facility​

For a single enterprise, which objects are fitted with Omnicomm equipment, the most informative is Fuel Balance Report that allows tracking and monitoring fuel chains across the entire company

A sample set of reports and options specific to monitoring in various industries. This set may vary from case to case

* - manipulators, opening control, axle load, status control, temperature, TPMS, IQFreeze, etc.

* * - an integral infrastructure of the fuel storage facilities, as well as mobile objects equipped with Omnicomm sensors and terminals (fuel trucks, mobile gas stations, etc.)

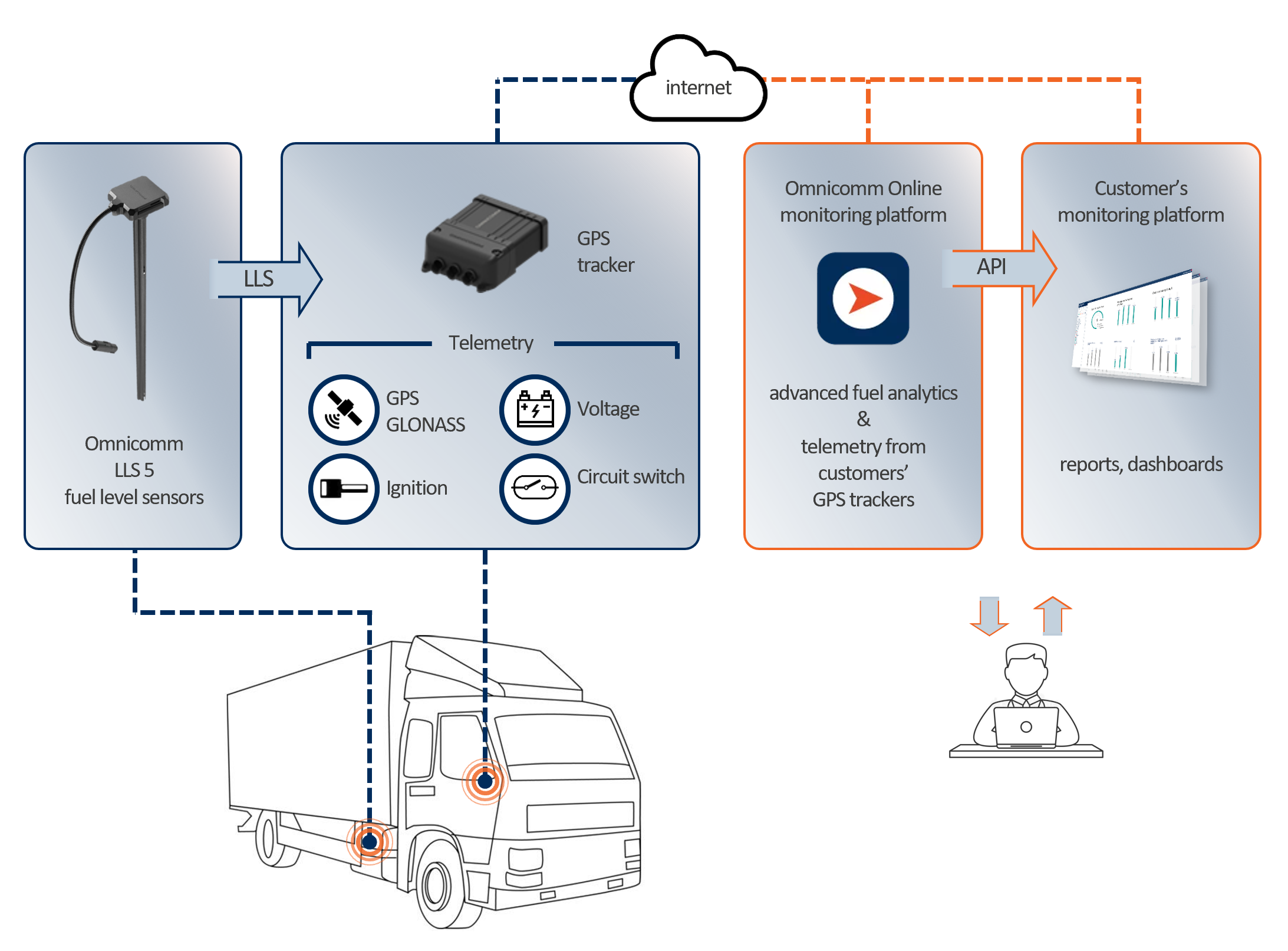

Sample equipment configuration and report list for monitoring a typical single tank truck.

Specification example

	OMNICOMM LLS 5 fuel level sensors are exceptionally robust, extremely precise (99.5% accuracy), totally reliable (highest possible ingress protection rating of IP69k) and super-safe. They deliver consistently high accuracy in even the harshest conditions.​ This sensor is ideal for both vehicles and stationary fuel storage facilities, guaranteeing seamless operation and maximum economic efficiency. OMNICOMM LLS 5 using unique fuel analysis technology FUELSCAN® developed by OMNICOMM which compares the physical characteristics of filled fuel with the characteristics of the fuel used for calibration to introduce a correction coefficient that automatically adjusts sensor readings to deliver accurate measurements. It means that no additional calibrations will be required.
	OMNICOMM Profi is a high-tech GPS-tracker designed for use in challenging environments. It is ideal for vehicles operating under extreme conditions, including construction and agricultural machinery, mining equipment, and heavy-duty vehicles. With IP54 protection, Profi ensures reliable navigation and monitoring, delivering accurate data even in the most remote locations.​ Using OMNICOMM Profi in heavy industries allows efficient tracking of machinery even under the most demanding conditions. Integrated with the OMNICOMM Online platform, this solution provides full fleet control, enhancing productivity and reducing risks. Its durable and reliable construction ensures stable operation even in the harshest environments, maintaining connectivity and supporting real-time processes.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface.​ ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

List of useful reports in Omnicomm Online

Specification example

	OMNICOMM LLS 5 fuel level sensors are exceptionally robust, extremely precise (99.5% accuracy), totally reliable (highest possible ingress protection rating of IP69k) and super-safe. They deliver consistently high accuracy in even the harshest conditions.​ This sensor is ideal for both vehicles and stationary fuel storage facilities, guaranteeing seamless operation and maximum economic efficiency. OMNICOMM LLS 5 using unique fuel analysis technology FUELSCAN® developed by OMNICOMM which compares the physical characteristics of filled fuel with the characteristics of the fuel used for calibration to introduce a correction coefficient that automatically adjusts sensor readings to deliver accurate measurements. It means that no additional calibrations will be required.
	OMNICOMM Profi is a high-tech GPS-tracker designed for use in challenging environments. It is ideal for vehicles operating under extreme conditions, including construction and agricultural machinery, mining equipment, and heavy-duty vehicles. With IP54 protection, Profi ensures reliable navigation and monitoring, delivering accurate data even in the most remote locations.​ Using OMNICOMM Profi in heavy industries allows efficient tracking of machinery even under the most demanding conditions. Integrated with the OMNICOMM Online platform, this solution provides full fleet control, enhancing productivity and reducing risks. Its durable and reliable construction ensures stable operation even in the harshest environments, maintaining connectivity and supporting real-time processes.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface.​ ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

List of useful reports in Omnicomm Online

* [3PP] – 3rd party product

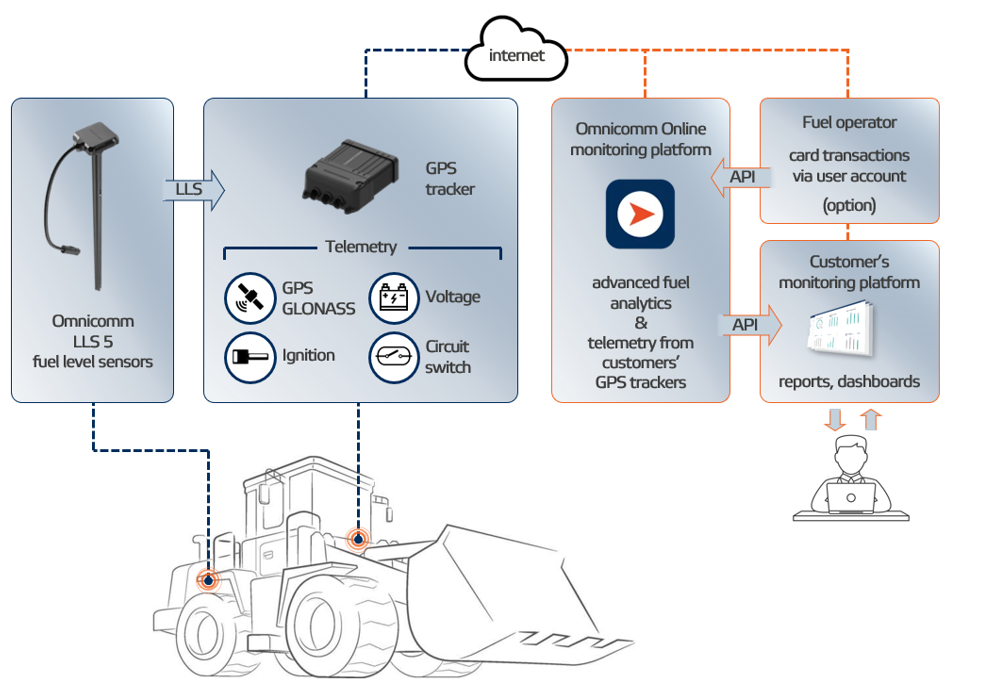

Sample equipment configuration and report list for monitoring a typical single tank construction machine/

Specification example

	OMNICOMM LLS 5 fuel level sensors are exceptionally robust, extremely precise (99.5% accuracy), totally reliable (highest possible ingress protection rating of IP69k) and super-safe. They deliver consistently high accuracy in even the harshest conditions.​ This sensor is ideal for both vehicles and stationary fuel storage facilities, guaranteeing seamless operation and maximum economic efficiency. OMNICOMM LLS 5 using unique fuel analysis technology FUELSCAN® developed by OMNICOMM which compares the physical characteristics of filled fuel with the characteristics of the fuel used for calibration to introduce a correction coefficient that automatically adjusts sensor readings to deliver accurate measurements. It means that no additional calibrations will be required.
	KTZ-MX is the extension cable, with options from 10-15-20 meters, to connect LLS-Ex 5 (located in hazardous area) to BIS-MX (located in the safe zone).
	OMNICOMM Profi is a high-tech GPS-tracker designed for use in challenging environments. It is ideal for vehicles operating under extreme conditions, including construction and agricultural machinery, mining equipment, and heavy-duty vehicles. With IP54 protection, Profi ensures reliable navigation and monitoring, delivering accurate data even in the most remote locations.​ Using OMNICOMM Profi in heavy industries allows efficient tracking of machinery even under the most demanding conditions. Integrated with the OMNICOMM Online platform, this solution provides full fleet control, enhancing productivity and reducing risks. Its durable and reliable construction ensures stable operation even in the harshest environments, maintaining connectivity and supporting real-time processes.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface.​ ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

List of useful reports in Omnicomm Online

* [3PP] – 3rd party product

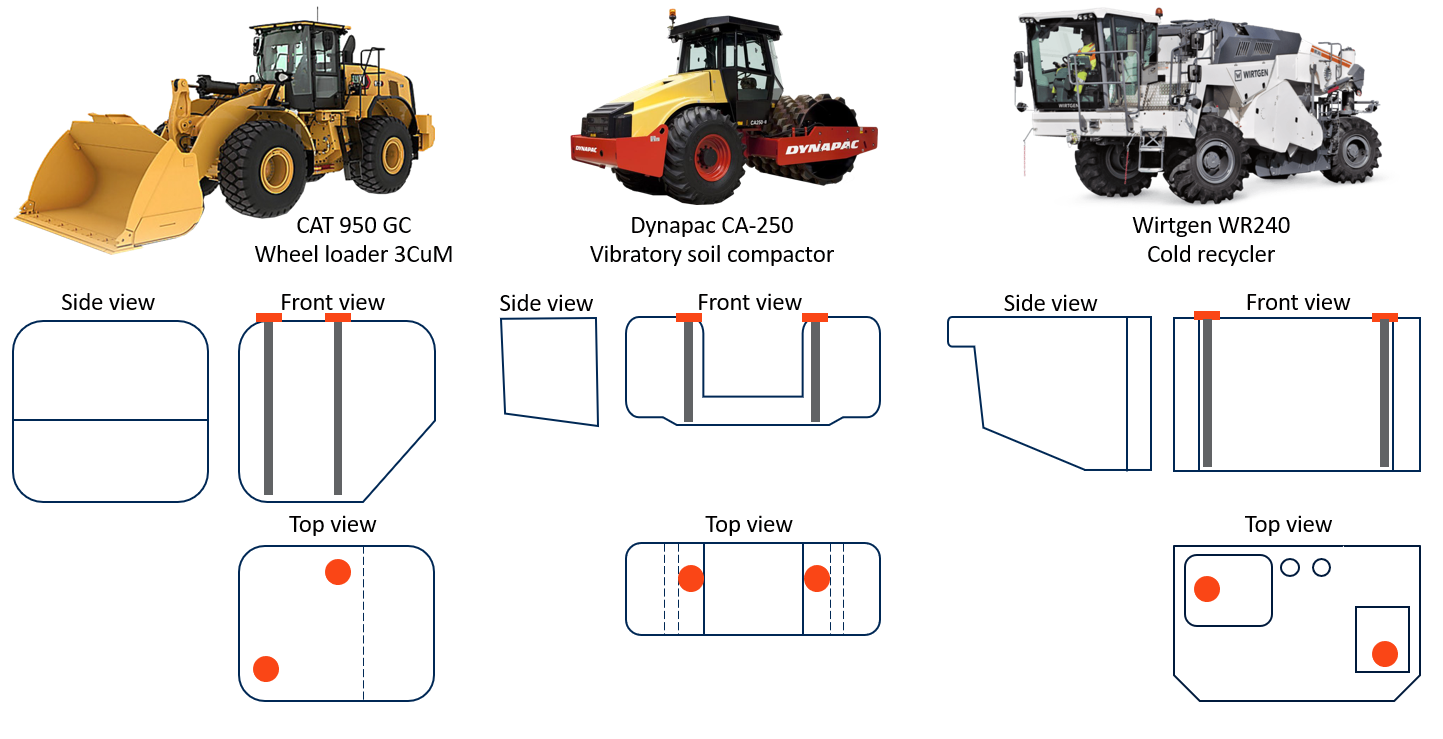

Often construction and mining equipment has complex shaped fuel tanks, here we give examples of the placement of additional sensors to compensate for different inclines, height differences and severe fuel fluctuations in the tanks during operation of the machine.

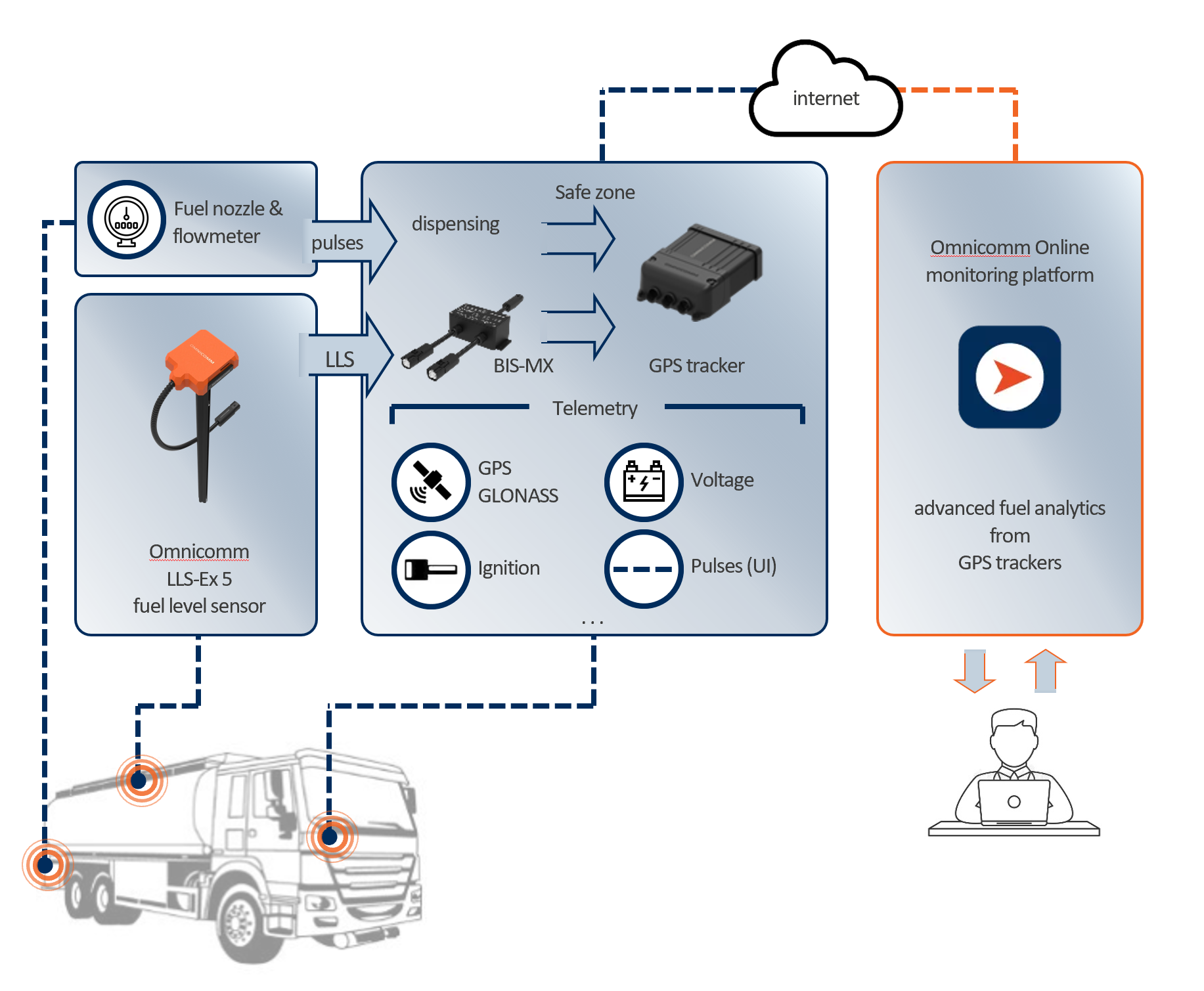

In addition to monitoring the fuel level in the tank, the mobile fuel dispenser (bowser) can be equipped with a fuel flow meter, the data from which can be presented in a special ‘Fuel Dispensing’ report. This option complements the standard tank level measurement.

Specification example

	OMNICOMM LLS-Ex 5 is the explosion-proof variant of the OMNICOMM LLS 5, designed for use in large tanks and facilities with stringent safety requirements — such as fuel storage depots, gas stations, and bowsers.​ This device must always be operated in conjunction with the BIS-MX power protection unit, installed in a safe zone.​ Certified by ATEX, the LLS-Ex 5 is approved for use in hazardous environments where flammable substances pose an explosion risk. Its robust design ensures compliance with safety standards across multiple industries, safeguarding both personnel and infrastructure.​
	KTZ-MX is the extension cable, with options from 10-15-20 meters, to connect LLS-Ex 5 (located in hazardous area) to BIS-MX (located in the safe zone).
	OMNICOMM Profi is a high-tech GPS-tracker designed for use in challenging environments. It is ideal for vehicles operating under extreme conditions, including construction and agricultural machinery, mining equipment, and heavy-duty vehicles. With IP54 protection, Profi ensures reliable navigation and monitoring, delivering accurate data even in the most remote locations.​ Using OMNICOMM Profi in heavy industries allows efficient tracking of machinery even under the most demanding conditions. Integrated with the OMNICOMM Online platform, this solution provides full fleet control, enhancing productivity and reducing risks. Its durable and reliable construction ensures stable operation even in the harshest environments, maintaining connectivity and supporting real-time processes.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface.​ ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

List of useful reports in Omnicomm Online

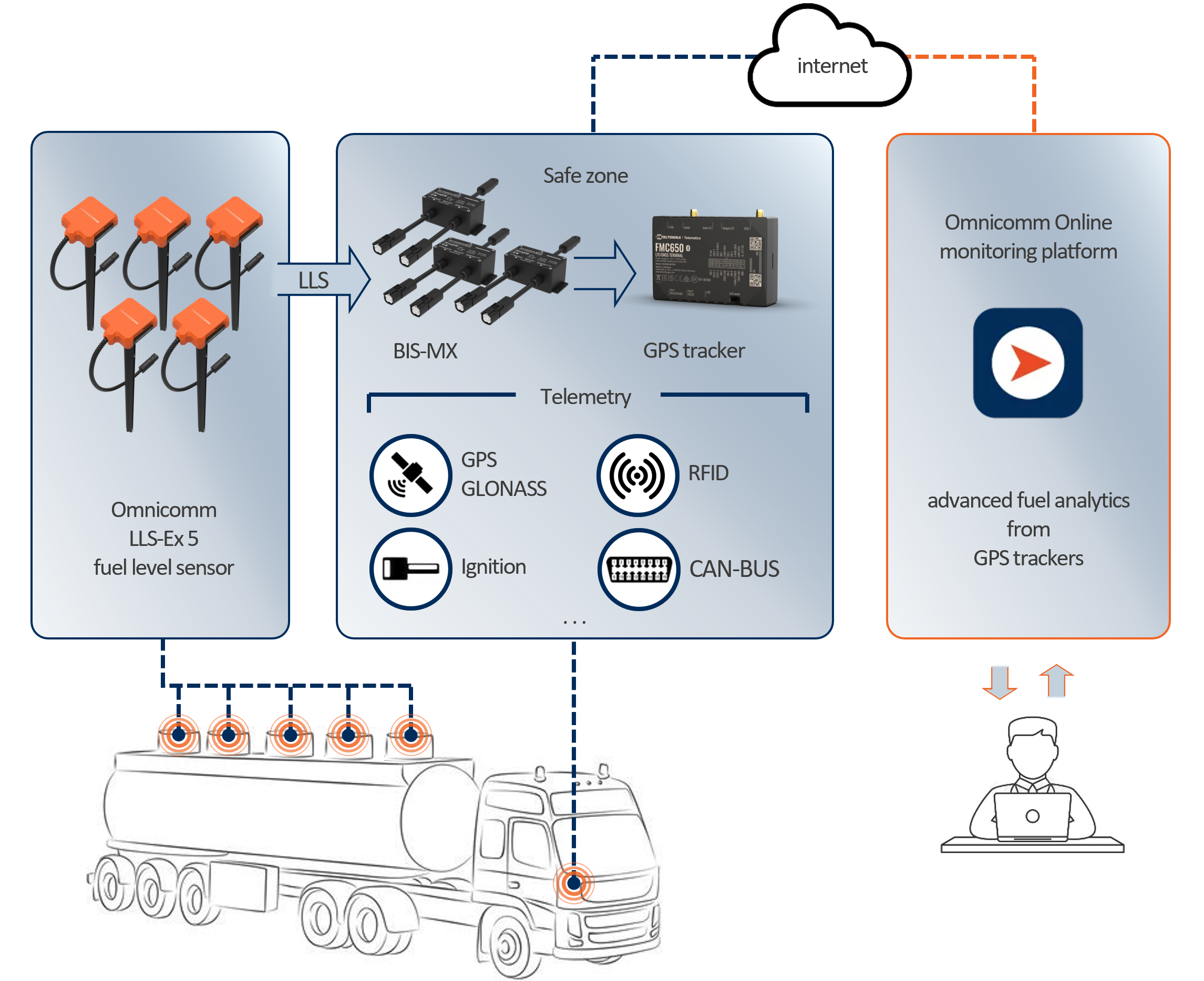

Fuel delivery trucks usually have from one to six fuel compartments in the tank, each equipped with a separate LLS-Ex 5 sensor. The spark protection unit and the tracker are located in the explosion-proof area, usually in the driver's cab.

Specification example

	OMNICOMM LLS-Ex 5 is the explosion-proof variant of the OMNICOMM LLS 5, designed for use in large tanks and facilities with stringent safety requirements — such as fuel storage depots, gas stations, and bowsers.​ This device must always be operated in conjunction with the BIS-MX power protection unit, installed in a safe zone.​ Certified by ATEX, the LLS-Ex 5 is approved for use in hazardous environments where flammable substances pose an explosion risk. Its robust design ensures compliance with safety standards across multiple industries, safeguarding both personnel and infrastructure.​
	BIS-MX intrinsic safety unit is designed to protect circuits when exposed to a voltage of up to 250 V. LLS-Ex 5 fuel level sensor is located in a hazardous area, and BIS-MX should be located in the explosion safe area.
	KTZ-MX is the extension cable, with options from 10-15-20 meters, to connect LLS-Ex 5 (located in hazardous area) to BIS-MX (located in the safe zone).
	OMNICOMM Profi is a high-tech GPS-tracker designed for use in challenging environments. It is ideal for vehicles operating under extreme conditions, including construction and agricultural machinery, mining equipment, and heavy-duty vehicles. With IP54 protection, Profi ensures reliable navigation and monitoring, delivering accurate data even in the most remote locations.​ Using OMNICOMM Profi in heavy industries allows efficient tracking of machinery even under the most demanding conditions. Integrated with the OMNICOMM Online platform, this solution provides full fleet control, enhancing productivity and reducing risks. Its durable and reliable construction ensures stable operation even in the harshest environments, maintaining connectivity and supporting real-time processes.

List of useful reports in Omnicomm Online

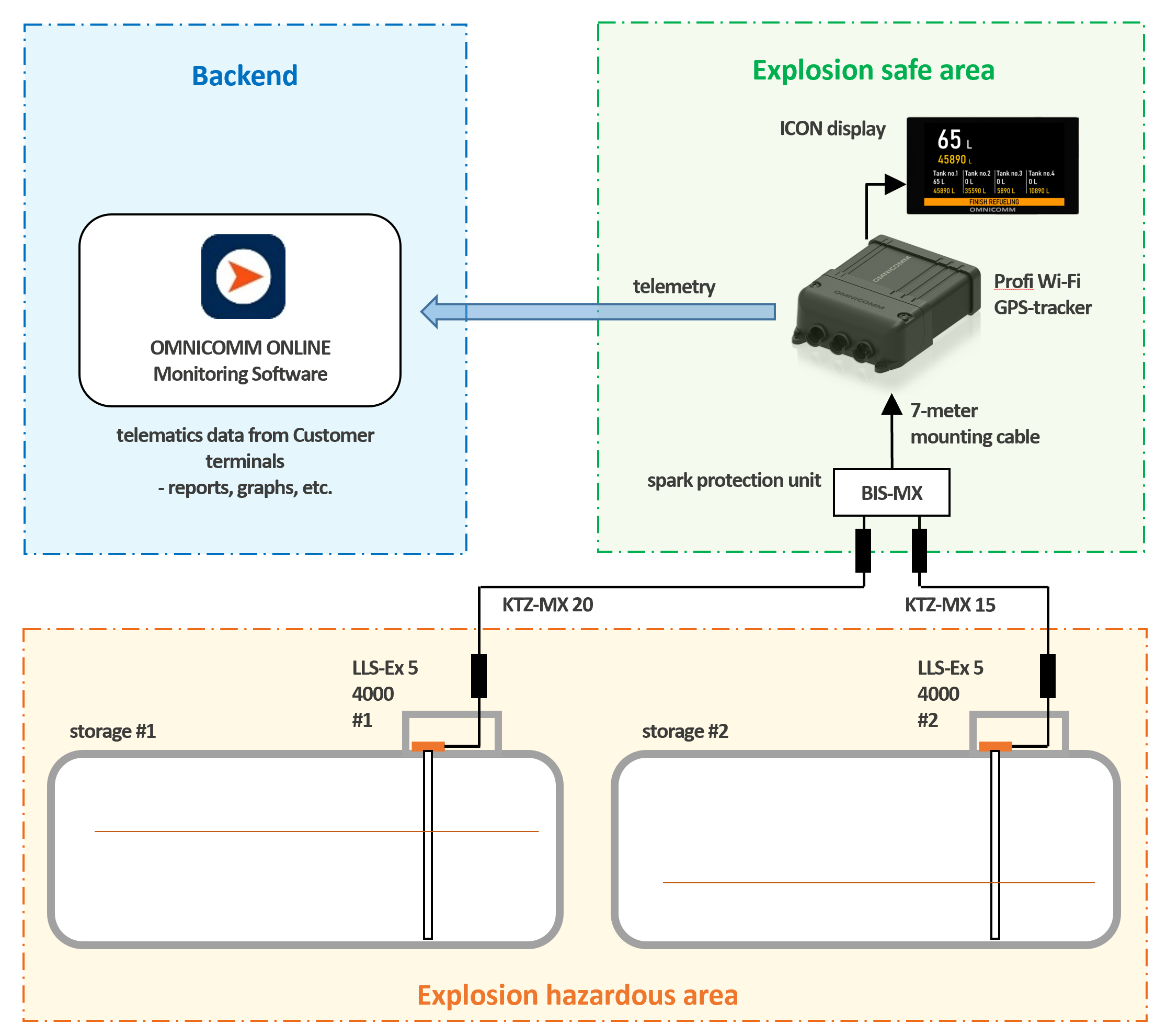

A solution for petrol stations can include at least explosion-protected LLS-Ex 5 sensors installed in the tanks, a GPS tracker and a monitoring platform. In addition, an ICON display, an end switches for access control, etc. can be optionally available.

Specification example

	OMNICOMM LLS-Ex 5 is the explosion-proof variant of the OMNICOMM LLS 5, designed for use in large tanks and facilities with stringent safety requirements — such as fuel storage depots, gas stations, and bowsers.​ This device must always be operated in conjunction with the BIS-MX power protection unit, installed in a safe zone.​ Certified by ATEX, the LLS-Ex 5 is approved for use in hazardous environments where flammable substances pose an explosion risk. Its robust design ensures compliance with safety standards across multiple industries, safeguarding both personnel and infrastructure.​
	BIS-MX intrinsic safety unit is designed to protect circuits when exposed to a voltage of up to 250 V. LLS-Ex 5 fuel level sensor is located in a hazardous area, and BIS-MX should be located in the explosion safe area.
	KTZ-MX is the extension cable, with options from 10-15-20 meters, to connect LLS-Ex 5 (located in hazardous area) to BIS-MX (located in the safe zone).
	OMNICOMM Profi Wi-Fi is an IP54 rating GPS-tracker that ensures stable data transmission in remote and challenging locations without cellular coverage. By using Wi-Fi for data transfer, the tracker enables effective monitoring even in areas where traditional communication methods fail. This solution is ideal for agricultural, construction, and mining industries, ensuring continuous tracking and reliable operation in the absence of cellular networks.​ The OMNICOMM Profi Wi-Fi tracker enhances fleet control in the most challenging environments. Combined with the OMNICOMM Online platform, it provides reliable connectivity and accuracy, improving fleet management and reducing the risk of losing control over assets.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface.​ ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

List of useful reports in Omnicomm Online

Specification example

	OMNICOMM LLS 5 fuel level sensors are exceptionally robust, extremely precise (99.5% accuracy), totally reliable (highest possible ingress protection rating of IP69k) and super-safe. They deliver consistently high accuracy in even the harshest conditions.​ This sensor is ideal for both vehicles and stationary fuel storage facilities, guaranteeing seamless operation and maximum economic efficiency. OMNICOMM LLS 5 using unique fuel analysis technology FUELSCAN® developed by OMNICOMM which compares the physical characteristics of filled fuel with the characteristics of the fuel used for calibration to introduce a correction coefficient that automatically adjusts sensor readings to deliver accurate measurements. It means that no additional calibrations will be required.
	OMNICOMM LLS-Ex 5 is the explosion-proof variant of the OMNICOMM LLS 5, designed for use in large tanks and facilities with stringent safety requirements — such as fuel storage depots, gas stations, and bowsers.​ This device must always be operated in conjunction with the BIS-MX power protection unit, installed in a safe zone.​ Certified by ATEX, the LLS-Ex 5 is approved for use in hazardous environments where flammable substances pose an explosion risk. Its robust design ensures compliance with safety standards across multiple industries, safeguarding both personnel and infrastructure.​
	BIS-MX intrinsic safety unit is designed to protect circuits when exposed to a voltage of up to 250 V. LLS-Ex 5 fuel level sensor is located in a hazardous area, and BIS-MX should be located in the explosion safe area.
	KTZ-MX is the extension cable, with options from 10-15-20 meters, to connect LLS-Ex 5 (located in hazardous area) to BIS-MX (located in the safe zone).
	OMNICOMM Profi Wi-Fi is an IP54 rating GPS-tracker that ensures stable data transmission in remote and challenging locations without cellular coverage. By using Wi-Fi for data transfer, the tracker enables effective monitoring even in areas where traditional communication methods fail. This solution is ideal for agricultural, construction, and mining industries, ensuring continuous tracking and reliable operation in the absence of cellular networks.​ The OMNICOMM Profi Wi-Fi tracker enhances fleet control in the most challenging environments. Combined with the OMNICOMM Online platform, it provides reliable connectivity and accuracy, improving fleet management and reducing the risk of losing control over assets.
	OMNICOMM ICON is a modern multifunctional display designed to show key vehicle performance parameters in real time. ICON provides drivers with timely and clear information, improving control over fuel consumption, speed, engine operating modes, and other critical indicators. The display integrates with the vehicle monitoring system, optimizing equipment use and enhancing safety. ICON is used together with OMNICOMM GPS trackers and/or up to 4 LLS digital fuel level sensors and reads the data through the RS-485 digital interface.​ ICON helps transport and logistics companies monitor vehicle operation, reduce fuel costs, and prevent emergencies.

List of useful reports in Omnicomm Online

A sample set of reports and options specific to monitoring in various industries. This set may vary from case to case

Omnicomm offers tailored monitoring solutions for agricultural machinery, utilizing LLS sensors to accurately measure fuel levels alongside comprehensive monitoring of basic telemetry and various auxiliary equipment. Our system integrates data from CAN bus interfaces, providing real-time insights that enhance operational efficiency, optimize fuel consumption, and support effective management of agricultural equipment in diverse field conditions.

​

Omnicomm provides advanced monitoring solutions for diesel locomotives, recommending the use of 2 to 4 LLS sensors to minimize measurement errors and ensure accurate fuel level readings. Our system offers comprehensive monitoring of essential telemetry data, enabling precise tracking of fuel consumption and operational parameters to optimize locomotive performance and maintenance.

Omnicomm offers specialized maritime monitoring solutions featuring LLS-Ex 5 sensors designed for large fuel tanks, ensuring precise fuel level measurements in demanding marine environments. Our system provides comprehensive monitoring of basic telemetry and additional onboard equipment, with the optional capability to transmit GPS tracker data via Wi-Fi, enabling enhanced vessel tracking and operational oversight.
