1. Select a fuel tanker.
2. Select a period of time for report generation.
3. Press button “Add report” and select “Fuel dispensing, fillings and drains”.

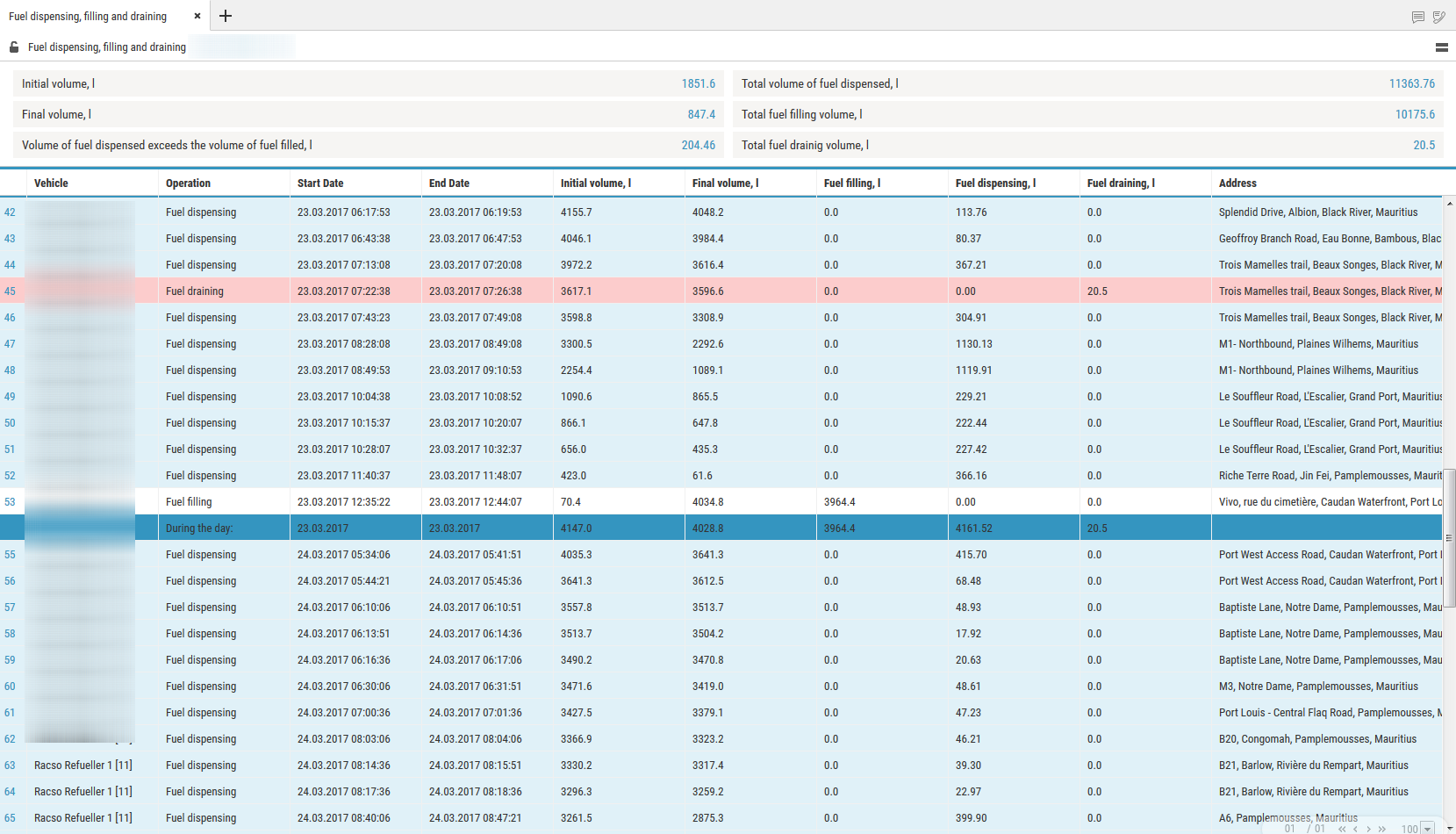

In the program window fuel tanker report will be displayed:

Report is provided with a feature allowing to sort the list by operation, start and end time of operation. The report contains the following general information:

• Initial volume, (l) is the volume of fuel in the tank at the start of the selected period
• Final volume, (l) is the volume of fuel in the tank at the end of selecte period
• Increase of dispense volume over fillings volume, (l) or potential drain, (l) is the difference between readings of LLS Fuel level sensor and counter is calculated by the formula:

“Difference between readings” = “Initial volume” - “Final volume” + “Volume of fillings” – “Volume of drains” - “Volume of dispenses”.

If the value “Difference between readings” is less than zero, the parameter “Excess of dispenses value over fillings value, l”

If value “Difference between readings” is less than one of maximum values: “Fuel draining threshold”, “Refuelling threshold”, “1% of fuel tank volume” or “20 liters”, Omnicomm Online assumes “Increase of dispense volume over fillings volume, (l)” to be equal to zero.

If “Difference between readings” is over or equal to zero, Omnicomm Online renames the parameter and displays “Potential drain, l”.

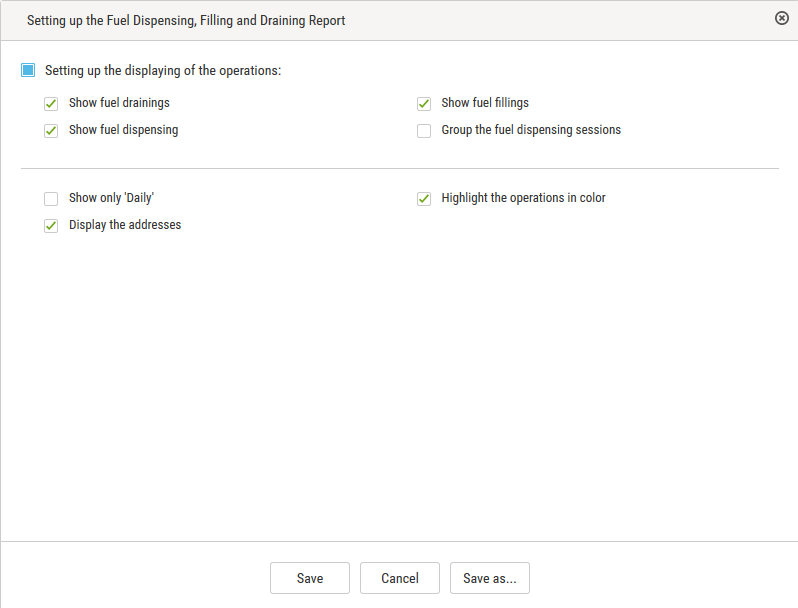

Fillings total volume, (l) is a total fuel volume filled in the tank during the period Fillings total volume, (l) is a total fuel volume filled in the tank during the period Drains total volume, (l) is a total volume of all drains during the period To set up report press right mouse button and select “Report settings”.

There is a feature allowing to apply color indication of fuel drains/fillings/dispense. To turn on color indication select “Select operations with color”. The following color designations are used in the report:

White background of line means fuel filling

Pink background is for fuel drain

Blue background of line means dispense, drain+dispense; filing+dispense;

drain/refuelling start; end of drain/filling

If it is required to display the information only for one day select “Display ‘For one day only’”.

Dispenses display can be grouped. One group of dispenses includes all dispenses which took place during a time period specified in the VH profile. The group may include only one dispense, if no dispenses took place after this one.

Acoording to the LLS sensors readings for a group of dispenses an initial (the volume of the first dispense in a group) and end value of fuel volume in the tank (the volume of the last dispense in a group) are recorded.

Comparison of cumulative volume of all dispenses in a group with change of volume in the tank is performed. If values are different by a value which greater than the allowed value, an additional drain or refuelling performed during dispenses are recorded:

Decrease of volume in the tank is greater than cummulate value of all dispenses, additional drain of fuel is recorded (e.g. performed through lid and access holes in the tank).

Decrease of volume in the tank is less than total volume of all dispeneses, an additional refuelling of fuel to the tank (e.g. if fuelling operator “twists” dispense counter in order it woul correspond to paper fuel ticket with fuelling nozzle being put to the hatch of their own tank).

If necessary the analysis of the motion of fuel and development of embezzlements and manipulations, group of deliveries it should be grouped so that they would be mapped into the report by one line. If it is necessary to examine all dispenses performed from fuel tanker, groups of dispenses can be ungrouped and only one dispense will be displayed in the line, and the size of table will increase.

To switch grouping select “Group dispenses”.

Apply settings by pressing “Save”.

This report table the following information:

“Operation“ inludes operations performed with fuel in the tank.

“Fuelling” is fuelling to the tank.

“Drain” is drain from the tank.

“Dispense” is fuel dispense through fuel nozzle.

“Dispense + Drain” is simultaneous dispense of fuel through fuel nozzle and fuel drain from the tank.

“Refuelling + drain” is simultaneous drain of fuel to the tank and dispense of fuel through fuel nozzle.

“Start” is a date and time of an operation.

“End” is a date and time of the operation end.

“Initial volume” is a volume of fuel in the tank at the moment of the operation start.

“Dispense, (l)” is a volume of dispensed fuel upon fullfilment of the “Dispense” operation.

or “Refuelling + dispense”

“Drain”, (l) is a volume of drained fuel when performing “Drain” or “Dispense + Drain” operation

“Refuelling, (l)” is a volume of fuel filled to the tank.

Address is an address of dispense. It is displayed only for group fuel dispenses.
