There are two types of desktops on Omnicomm Online:

• Executive's desktop is a report containing general information on all VH of the user. Description of the Executive's desktop is given in the “Reports” section.
• Desktop is a combined set of related reports on the VH.

Please see the example:

The maximum number of reports on the desktop:

• 10 reports, each 1/2 of the desktop in size
• 20 reports, each 1/4 of the desktop in size

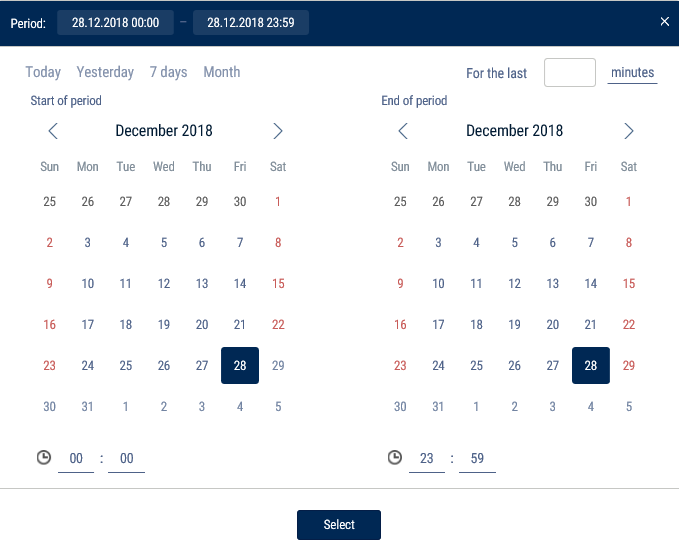

In the “Reports” window select a period for report generation.

If a selected period includes a period of blocking, the report will not be generated. Select another period for report generation.

In case VH data recalculation for the period of report generation is not finished, the report will display information on a period of the processed data included in the report:

To display a final report on all data of the period of report generation, wait for VH data recalculation to be completed and refresh the report.

The vehicles are displayed according to the selected operation filter: Setup of VH filters operation is performed in section “Administration”/“Vehicles”

Select an object from the list for which it is required to generate report or change a period of report generation. If it is required, get the report memorized.

Un-pinned report If another object or period is chosen, the report will be automatically rebuilt.

Pinned up report If another object or period is chosen, the pinned up report will not change.

User reports are created on the basis of the standard reports, provided with feature of displayed parameters setup.

User reports in the list of reports are located under the reports, on the basis of which they were created.

To create user report do the following:

1. Select an object, for which it is required to create a user report.

2. Press “Add report” button and select a report.

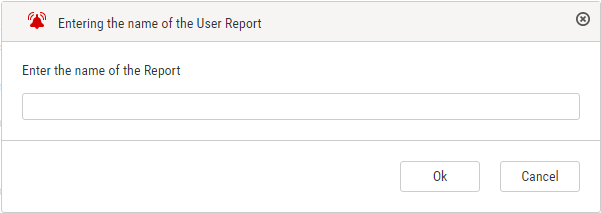

3. Choose information to be displayed in the report. Press button “Save as” The window will open, in which it is required to enter a user report name.
