1.Select one or several objects.

2.Select a period of time for report generation.

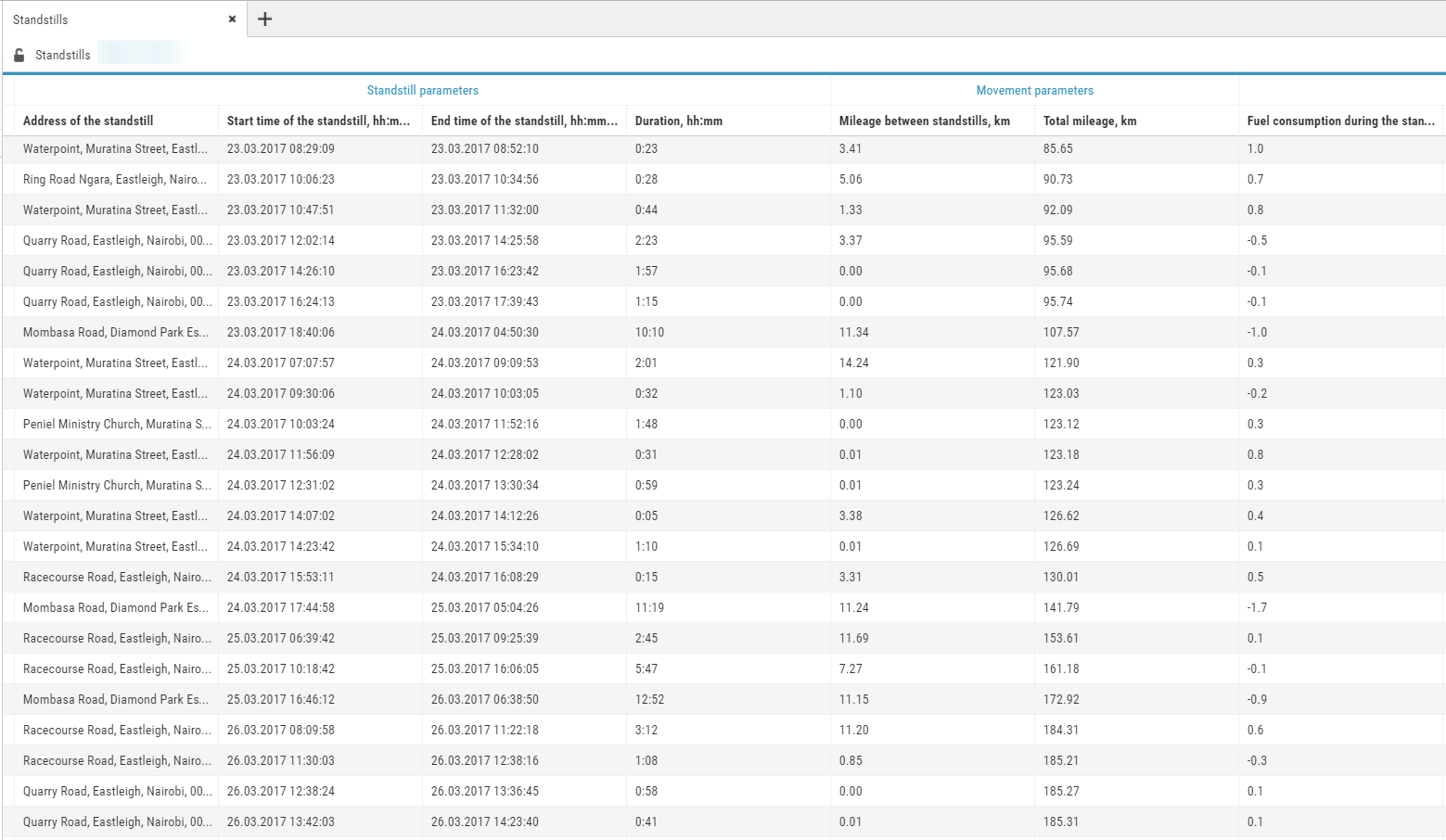

3.Press button “Add report” and select “Standstills”.

Determination of stoppages and standstills shall be performed taking in account the VH ignition or by GPS coordinates in acccordance with the settings in the VH profile.

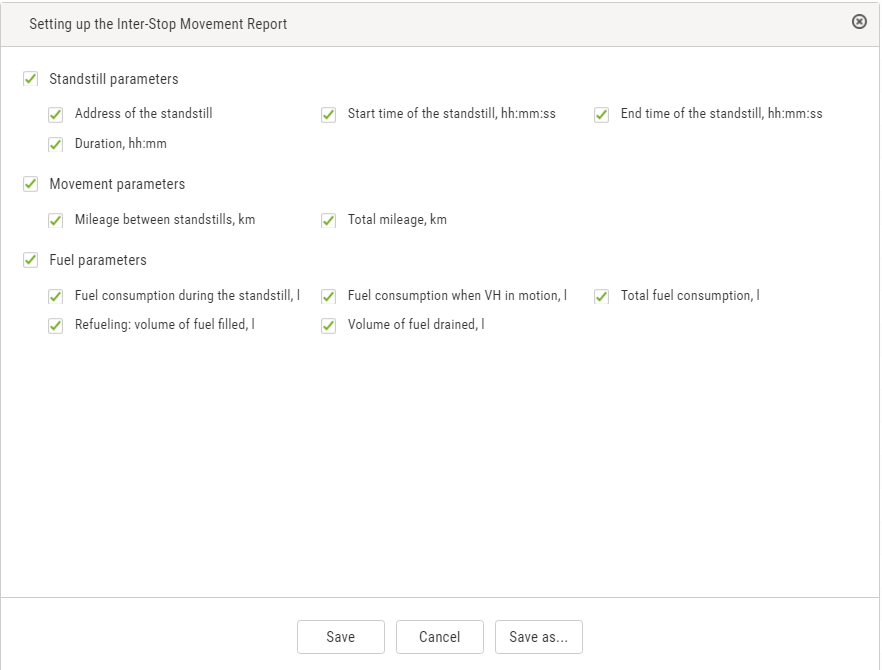

Select the information to be displayed in the report by pressing the right mouse button and choosing “Report settings”.

Standstill shall be recorded if the following conditions are met: ignition is on, speed is less than 2 km/h, tim from the moment of ignition switch off has exceeded value «Record standstills over, min” set in the VH profile and at the moment the standstill is over. General information in the report: “Track length, km” is a total length of the track for all report events “The average speed of motion km/h” is a ratio of the parameter “Track length, km” to the “Total time of movement” parameter value. “Duration of the accounting period” is a duration of the generated report period. “Total time of movement” is total time, calculated for the events with a parameter “Track length, km” being different from 0 “Total time of standstills/stoppages” is a total time of standstills and stoppages in the report “Total time of data absence” is the total time, calculated for the events “data absence” The report contains information on the following events:

1. Standstill/stoppage

Start of a standstill is recorded, if the following conditions are met:

The VH speed is less than 2 km/h for all continuous events with “raw” data.

The distance between any events with “raw” data is less than 800 m.

The distance between the first and last event with “raw” data is greater than value of “Monitor stoppages longer than, minutes”.

The time period between the first and last event with raw data does not include periods of data absence.

End of a standstill is recorded, if the following conditions are met:

Start of a standstill has been identified. One of the standstill conditions has stopped being performed.

2. Change of standstill place

The current event of the standstill start was identified. According to the valid date the previous event was standstill end. The event of data absence start has not been identified.

3. Data absence

The start of the data absence period shall be recorded, when the following conditions are met:

The time between the current event and the last event with the valid data is greater than the time set in the “Minimum period of data absence”.

If the current event is the first valid event with “raw” data, the date and time of the VH profile import shall be assumed the last event with the valid data.

The end of the data absence period shall be recorded, when the following conditions are met:

The start of data absence has been recorded. The current event has valid data.

4. Movement

The movement shall be recorded, if the VH's speed is greater than 2 km/h.

For the events “movement” and “absence of data” the following information shall be provided:

“Movement start time”

“Movement end time”

“Duration”

“Track length, km”

“Maximum recorded speed, km/h”

“Average speed, km/h”
