Violations
- Select a driver or vehicle.
- Select a period of time.
- Press the “Add report” button and select “Violations”.

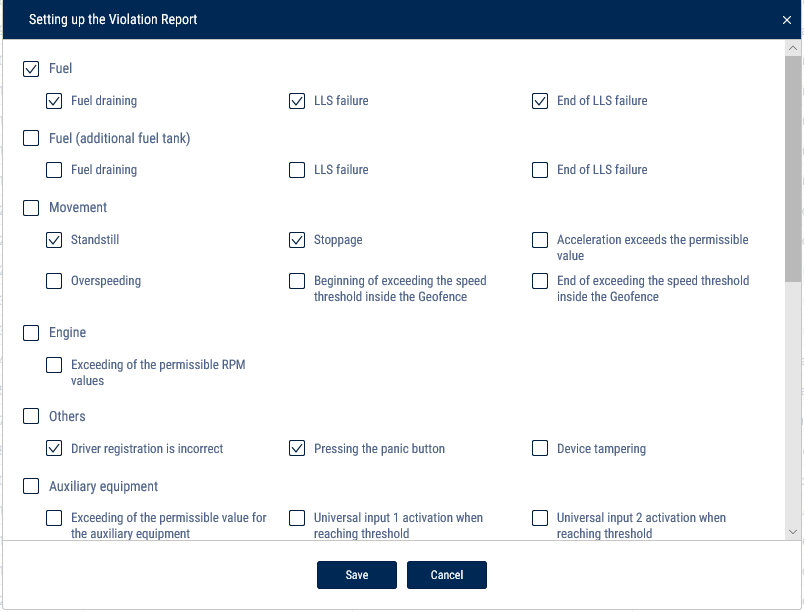

Select information to be displayed in the report by pressing the right mouse button and choosing “Report settings”:
In the sections “Fuel” and “Fuel (additional tank)”:
•Drain is a volume of drained fuel exceeding value “Fuel draining threshold” set up in the VH profile.
•Fuel level sensor failure is a date and time of start of LLS liquid level sensor failure.
•End of fuel level sensor failure is a date and time of LLS liquid level sensor failure.
In the “Movement” section:
•Standstill is a standstill over quantity of minutes set in the VH profile. Standstill shall be recorded upon the following conditions: ignition is ON and speed is less than 2 km/h.
•Stoppage shall be recorded upon the following conditions: ignition ON and speed is less than 2 km/h. The address shall not be recorded for stoppages.
•Acceleration exceeds allowed one — excession of the maximum allowed acceleration set in the VH profile.
•Exceeding speed limit is exceeding maximum allowed speed set in the VH profile.
•Start of speed limit excess in geofence is date and time of start of the allowable speed exceed when the VH is in the geofence.
•End of speed limit excess in geofence is date and time of speed limit excess, when the VH is in the geofence.
In the section “Engine”:
•Exceeding of the permissible RPM value means exceeding of maximum allowed level of engine RPMs set in the VH profile.
In section “Other”:
•Incorrect registration of a driver is an application of the I-Button with the identification number not registered in Omnicomm Online or application of the I-Button with the identification number registered for a driver which has a “Fired” status in Omnicomm Online.
•Device tampering is actuation of a device tampering sensor (only for Omnicomm Profi 2.0 Terminal).
•Pressing panic button is actuation of the panic button.
In the section “Auxiliary equipment”:
•Exceeding allowed value for auxiliary equipment set in the VH profile.
•Actuation of UI1 in discrete mode is control over actuation of universal input No. 1 of discrete type taking in account VH speed. In case there is no actuation, a violation will be recorded.
•Actuation of UI2 in discrete mode is control over actuation of universal input No. 2 of discrete type taking in account VH speed. In case there is no actuation, a violation will be recorded.
In section “Routes”:
•Beginning of the trip is a deviation from the planned start of the trip, if the planned time of the trip start is set in the settings.
•Visiting the control points is deviation from planned visiting of the control points, if the planned time of visiting is given in settings of the control points and control of control points visitiing is ON.
•Overriding route borders — exiting geofence limiting the route
•Trip completion — deviations on trip completion : deviation from trip completed to scheduled trip completion, completion of trip upon maximum allowed duration of trip control, the trip did not take place, the trip was forced to be completed.
In the “Safe driving” section:
•Movement with lights off
•Movement with unfastened seatbelts
•Exceeding of maximum speed limit
•Exceeding of allowed speed limit
•Short-term exceeding of maximum speed limit
•Short-term exceeding of allowable speed limit
•Positive acceleration threshold exceeding
•Negative acceleration threshold exceeding
•Lateral acceleration threshold exceeding
•Vertical acceleration threshold exceeding
•Allowed turning speed exceeding
•Maximum turning speed exceeding
•Traffic violation Overspeeding
•Long idling
•Movement with cold engine
•Movement with overheated engine
•Low engine speed movement
•High engine speed movement
•No valid GPS data
A description of data sources for safe driving parameters is provided in Omnicomm Online. Administration Guide. “Bad habits” section.
“Display event addresses” - check the box to display the address where the violation was recorded.
“Duration threshold” - enter the time period for which it is allowed to exceed the maximum allowable or the maximum speed, without a violation being recorded.
Duration threshold is used for the following events:
•Speed threshold exceeded briefly
•Exceeding of maximum speed limit
•Exceeding of allowed speed limit
•Short-term exceeding of maximum speed limit
•Short-term exceeding of allowable speed limit
•Traffic violation Overspeeding

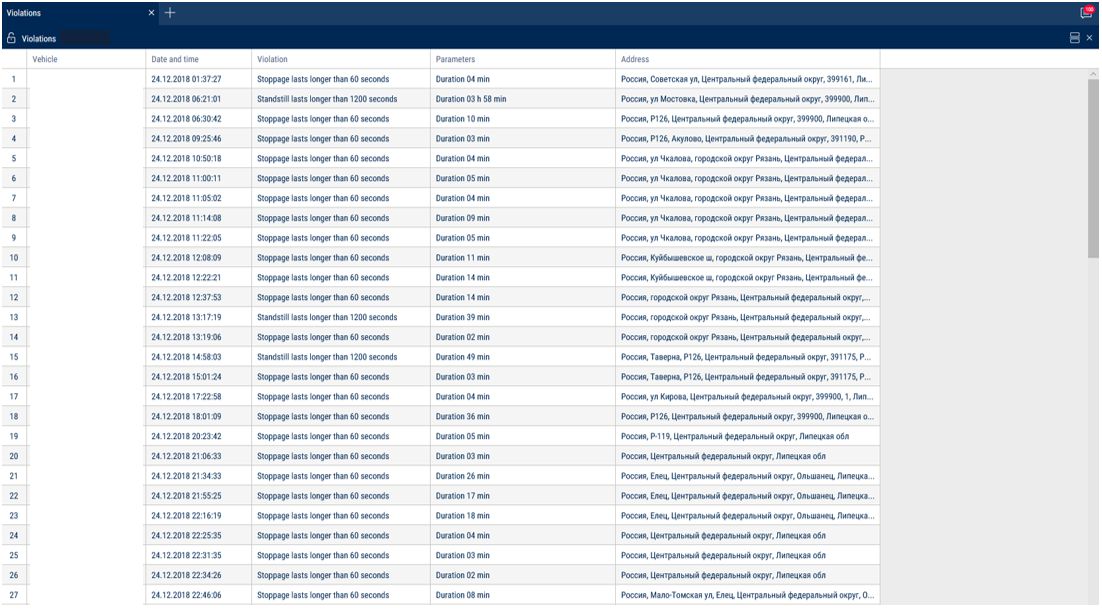

The report contains the following information:
•Vehicle means a registration number or a unique vehicle name.
•Date and time are date and time when Omnicomm Online has identified a violation.
•Violation is one of violations selected to be displayed in the report.
•Parameters mean a parameter typical for a particular type of violation. For example, in case of discharge is a volume of fuel and time during which the discharge took place.
•Address is a address at which Omnicomm Online has identified a violation.
In the “Address Display Settings” section, select:
•Display the address - turn on to display the address of the current vehicle location
•All - turn on to display the complete vehicle address
•Abbreviations - turn on to abbreviate address parameters (such as st., ave.)
Select the parameters to display in the address:
•Country
•Region
•City/town
•Street
•Building
•Zip code
