1.Plese select one or several drivers or VH.

2.Please select a period of time for report generation.

3.Please press “Add report” button and select “Statistics”.

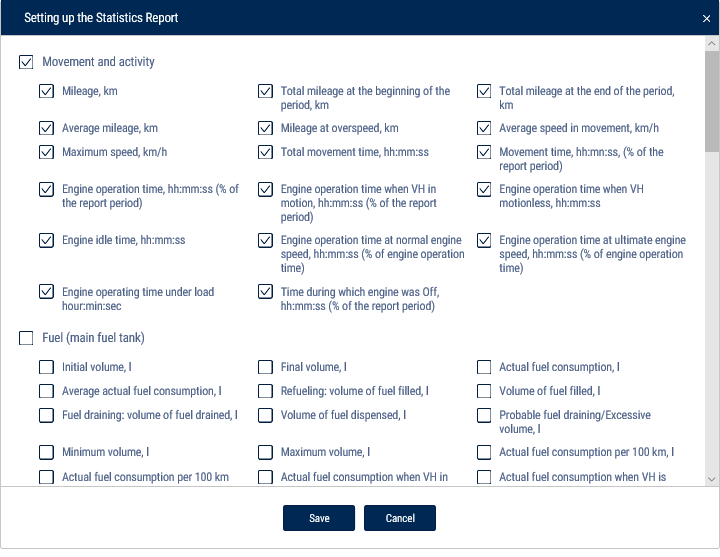

Select information to be displayed in the report by pressing the right mouse button and choosing “Report settings”:

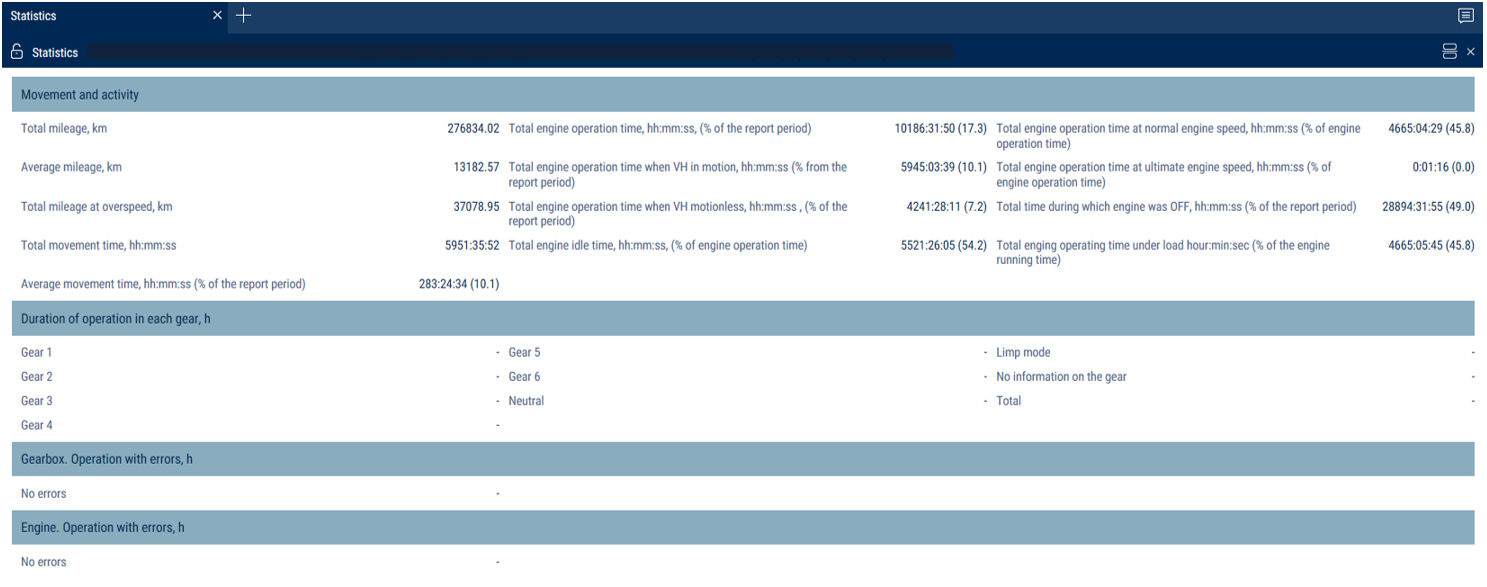

The program window will display a report with statistical data on a VH or driver for the selected period.

Description of the VH operation parameters calculation is given in Appendix B.

In section “Movement and operation”:

•Mileage, km

•Average mileage, km

•Speeding mileage, km

•Average speed in motion, km/h

•Maximum speed, km/h

•Movement time, hour:min:sec, (% from the report period)

•Time of engine operation, hour:min:sec, (% from the period of report)

•Engine operation time when VH in motion, hour:min:sec, (% from the report period)

•Engine operation time when VH motionless, hour:min:sec

•Engine idle time, hour:min:sec

•Engine operation time at normal engine speed, hour:min:sec, (% from the time of engine operation)

•Engine operation time at ultimate engine speed, the hour: min: it flogged, (% from the time of engine operation)

•Engine OFF time, hour:min:sec, (% from the report period)

In “Fuel” section (main tank):

•Initial volume, l

•Final volume, l

•Actual consumption, l

•Average actual consumption, l

•Refuellings volume, l

•Volume of fillings, l

•Fuel volume drained, l

•Volume of fuel dispensed, l

•Probable fuel draining/Excessive volume, l

•Minimum volume, l

•Maximum volume, l

•Actual consumption per 100 km, l

•Actual consumption in motion, l

•Actual consumption motionless, l

•Сonsumption rate per 100 km, l

•Estimated consumtion according to rate for 100km, l

•Deviation from rate per 100 km, %

•Overconsumption against the rate per 100 km, l

•Actual consumption per engine operation time, l

•Actual consumption per motohour, l

•Actual consumption per hour of engine operation motionless, l

•Actual consumption per hour of engine operation in motion, l

•Rate of consumtion per hour of engine operation

•Estimated consumption by rate per hour of engine operation, l

•Deviation from rate per hour of engine operation, %

•Overconsumption against the rate per hour of engine operation for the period, l

•The actual consumption during the engine idle time in motion, l

•The actual consumption during the time of engie operation under the rated load in motion, l

•The actual consumption during the time of engine operation with exceeding of the maximum load in motion, l

•The actual consumption during the engine idle time without motion, l

•The actual consumption during the time of engine operation under the rated load without motion, l

•The actual consumption during the time of engine operation with exceeding of the maximum load without motion, l

•Volume of CO2 emissions

Volume of CO2 emissions for gasoline = 2392*actual consumption during the period

Volume of CO2 emissions for diesel = 2640*actual consumption during the period

In the “Fuel weight” (main tank) section:

•Initial mass, kg

•Final mass, kg

•Actual consumption, kg

•Mass of refueling, kg

•Mass of draining, kg

•Actual consumption per 100 km, kg

•Actual consumption per hour of engine operation, kg

In section “Fuel” (auxiliary tank):

•Initial volume, l

•Final volume, l

•Actual consumption, l

•Average actual fuel consumption, l

•Refueling volume, l

•Draining volume, l

•Minimum volume, l

•Maximum volume, l

•Actual consumption per 100 km, l

In Additional Equipment Operation Section:

•Maximum value within the period

•Minimum value within the period

•Total value during the period

•Time of operation, hour:min:sec

•Downtime, hour:min:sec

•Operating time is greater than allowed value

•The operating time is shorter than the allowed value

•Mileage with auxiliary VH equipment ON, km

•Consumption with auxiliary VH equipment ON, l

•Consumption with auxiliary VH equipment ON per hour of operation, l

•Consumption with auxiliary VH equipment ON per 100 km, l

In the “Meter readings (CAN bus data) at the end of report period” section:

•Odometer reading, km

•Engine hour meter reading, hour:min

•Fuel consumption meter reading, l

In the “Meter readings (CAN bus data) before maintenance service” section:

•Mileage before Maintenance service, km

•Engine hours before Maintenance service, hour

In section “Data from CAN during the period of report generation”:

•Mileage, km

•Engine hours, hour:min

•Consumption of fuel, l

In the “iQFreeze operation” section:

•Time of refrigerator operation, hour:min:sec, (% from the report period)

•Engine hours, hour:min:sec, (% from the report period)

•Total fuel volume consumed, l

•Consumption with increased rpm per 100 km, l

•Consumption with increased rpm per engine hour, l

•Consumption with lowered rpm per 100 km, l

•Consumption with lowered rpm per engine hour, l

•Fuel consumption per motor hour (CHU), l, is calculated using the following formula: Fuel consumed total, l / Motor hours, hour:min:sec, (% of report period)

•Fuel consumption in the “Stop” refrigerator operation mode, l

•Fuel consumption in the “Heating” refrigerator operation mode, l

•Fuel consumption in the “Cooling” refrigerator operation mode, l

•Fuel consumption in the “Defrosting” refrigerator operation mode, l

To view a detailed report on the refrigerator errors, click Number of errors during the period.

To view a detailed report on the reefer door opening events, click Number of door openings notifications.

In the “TPMS” section:

•Mileage without data from the tire pressure control system on at least one wheel, km (% from mileage for the period)

•Mileage with data from the tire pressure control system, km (% from mileage for the period)

•Mileage with violation of normal pressure in at least one wheel, km (% from mileage for the period)

•Save tyre casing service life for the period (maintaining the target pressure), km

•Fuel saved during the period (maintaining the target pressure), l

In the “Technical work parameters display” section:

“Type of equipment” - select the type of equipment for which to display technological parameters.

For the TG series Grader equipment:

•Duration of operation by gear, h

Gear 1

Gear 2

Gear 3

Gear 4

Gear 5

Gear 6

Neutral

Limp mode

No information on the gear

Total

•Transmission. Operation with errors, h

Error code with duration

No errors with duration

•Engine. Operation with errors, h

Error code with duration

No errors with duration
